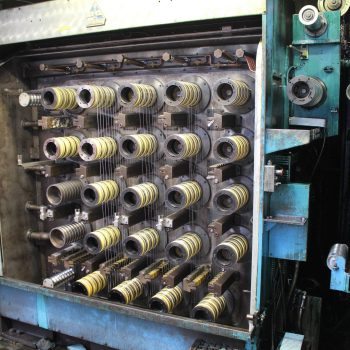

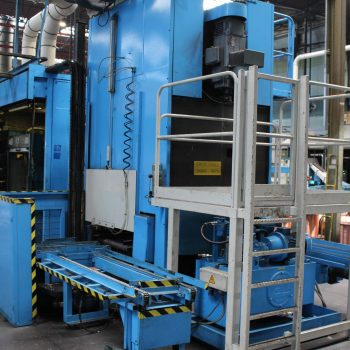

Ref: 59C-352– Henrich 21 IE 25-8, 25 Die Copper Fine 8 Wire Drawing/Annealing Line

Copper Fine 8 Wire Drawing/Annealing Line
Electronics was made new in 2014 by HENRICH with SIEMENS PLC S7 and SIEMENS Drives Line has been well maintained and in in perfect working condition.

Includes:
Annealer Model EI-8 1600 amps, with 128 kVA transformer
Dancer/accumulator for static spooler
Static spooler 800 mm, Model 1,8 LB 800C
In/out conveyors for static spooler
RESY filter, heat exchanger and pump for emulsion and annealer
Spare parts

Manufacturer: Henrich
Model: 21 IE 25-8
Wire Type: Copper/tinned copper
Number of Dies: 25
Capstan Diameter: 135mm
Capstan Material: Ceramic
Number of Wires: 8
Elongation: 21%
Enter: 8 x 2,2 mm max
Finish: min. 0.20 mm, max. 0.50 mm
Speed: max. 30 m/sec
Main Motor: 180 KW DC
Second Motor: 28 kW AC
