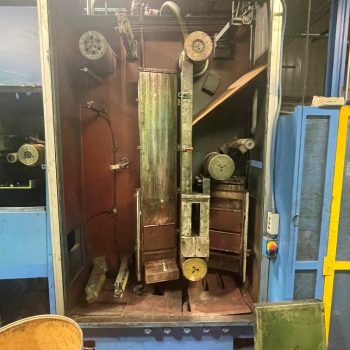

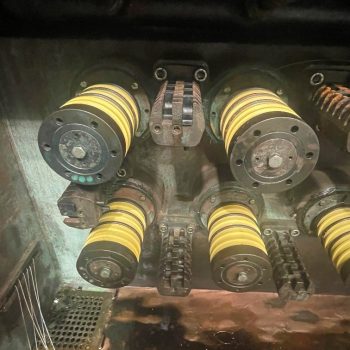

Ref: 59C-343 - Samp MT 12.7.18.BW, 18 Die Copper Fine 7 Wire Drawing/Annealing Line
Ref: 59C-343 - Samp MT 12.7.18.BW, 18 Die Copper Fine 7 Wire Drawing/Annealing Line - Image 2
Ref: 59C-343 - Samp MT 12.7.18.BW, 18 Die Copper Fine 7 Wire Drawing/Annealing Line - Image 3

Ref: 59C-343 – Samp MT 12.7.18.BW, 18 Die Copper Fine 7 Wire Drawing/Annealing Line

Copper Fine 7 Wire Drawing/Annealing Line

Includes:
Annealer Model R160
Single Static Spooler Din 800 mm reels

Manufacturer: Samp
Model: MT 12.7.18.BW
Year of Manufacture: 1995
Wire Type: Copper
Number of Dies: 18
Number Of Wires: 7
Elongation: 26.1%
Enter: 7 x 2.052mm (400 N/mm2) and 7 x 2.588mm (250 N/mm2)
Finish: 1.024 to .320 inch (18-28 awg)
Speed: 31 m/sec.max
Motor: 167 KW, Secondary Motor Power 31KW.

For more pictures, further specifications, questions, or if you cannot find what you are looking for, please contact us.
