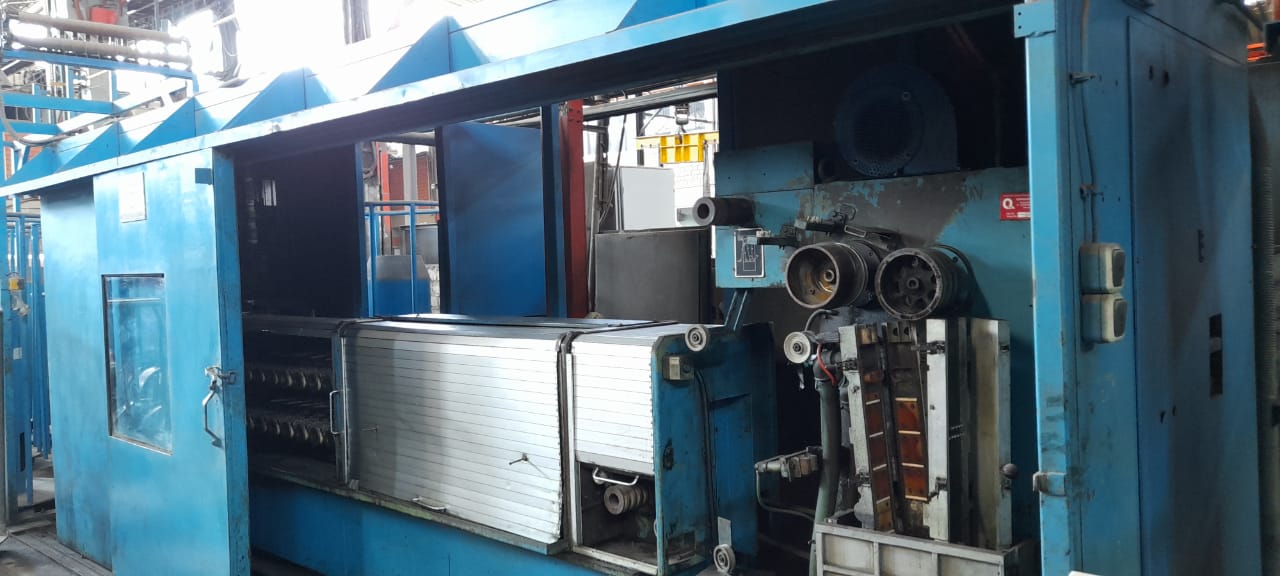

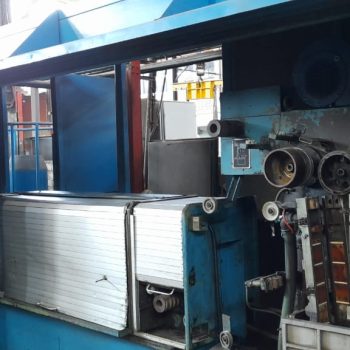

Ref: 59C-342 – Niehoff MMH80, 21 Die Copper Fine 8 Wire Drawing/Annealing Line

Copper Fine 8 Wire Drawing/Annealing Line
Machine is still installed, but not in production. Last product Nov 2021

Includes:
Annealer Model R160
One Take-up: Spooler 560 mm diameter reels

Manufacturer: Niehoff
Model: MMH80
Year of Manufacture: 1987
Wire Type: Copper
Number of Dies: 21
Number of Wires: 8 wires until max. 0.4 mm, 4 wires until max. 0.7 mm
Enter: 1.3 mm with 8 Wires at 15 m/sec, 1.6 o 1.8 mm at 10 m/sec
Finish: min. 0.2 mm, max. 0.7 mm
Motor: 75 KW 3000 rpm, 460 V DC
