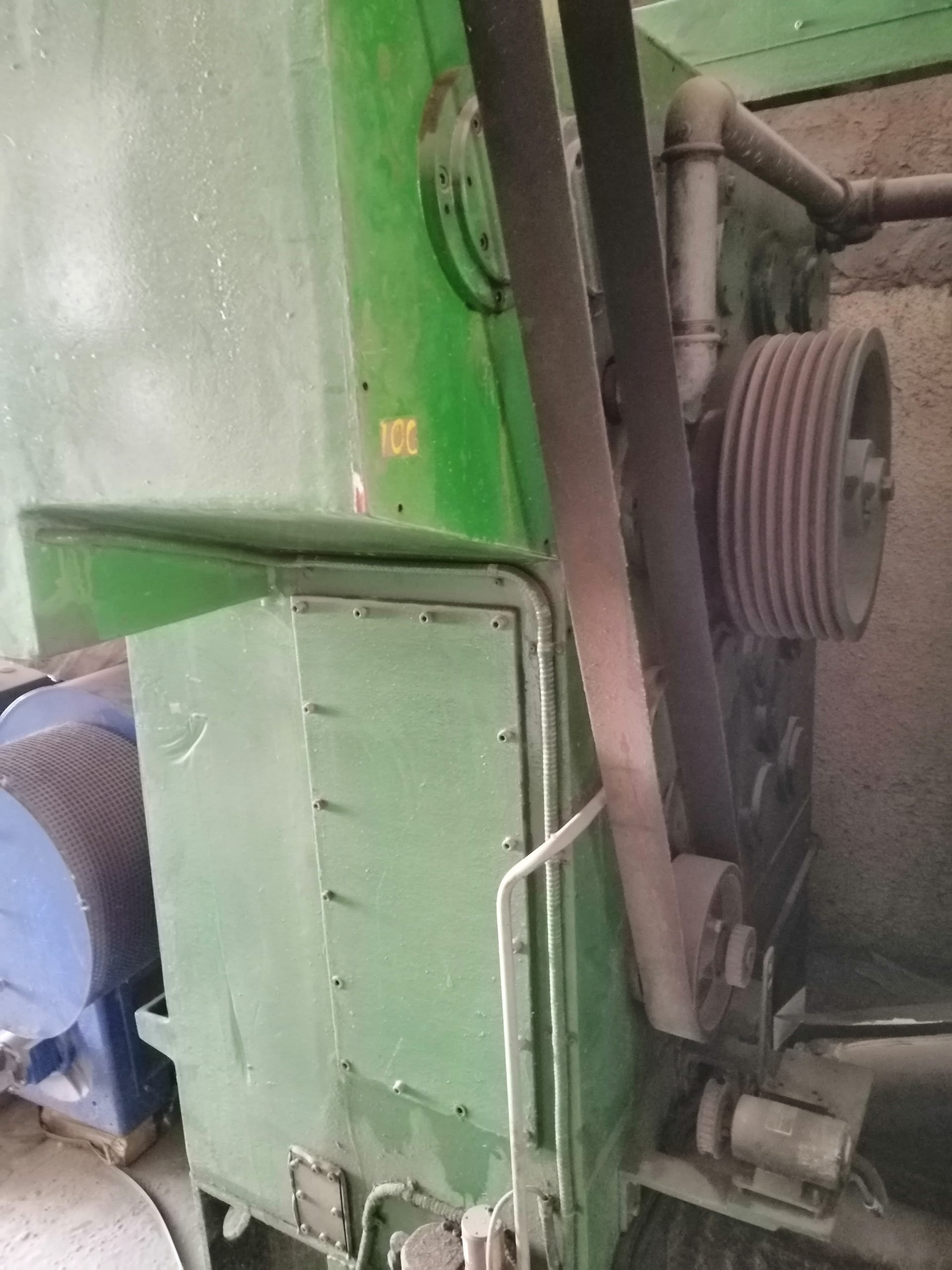

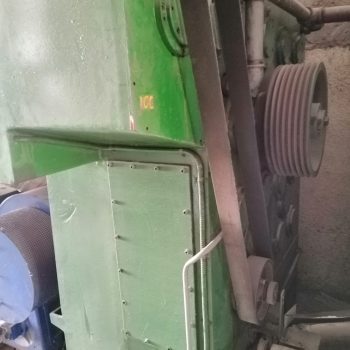

Ref: 59B-201 – Henrich 24 G-17, 17 Die Copper Intermediate Wire Drawing/Annealing Line

Copper Intermediate Wire Drawing/Annealing Line

Includes:
Annealer Henrich EG, Amps: 450 A, steam, nitrogen
Take-up Henrich GS-0630, Single Spooler Spool Size: Flange = 630 mm; Barrel = 355 mm, Arbor = 127 mm
Accumulator

Manufacturer: Henrich
Model: 24 G-17
Year of Manufacture: 1979
Wire Type: Copper
Number of Dies: 17
Elongation per draft: 24%
Enter: 3.5 mm (0.138 inch) dia.max
Finish: 0.4-1.2 mm dia.
Speed: 0.40 to 0.10 mm at 40 m/sec, 1.0 to 1.2 mm at 30 m/sec
Motor: DC 121 kW (160 HP)
