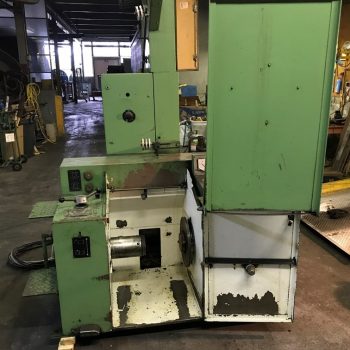

Ref: 59B-200 – Niehoff M30, 17 Die Copper Intermediate Wire Drawing/Annealing Line

Copper Intermediate Wire Drawing/Annealing Line

Includes:
Annealer Niehoff VG30
Take-up unit single shaftless spooler

Manufacturer: NIEHOFF
Model: M30
Year of Manufacture: 1974
Wire Type: Copper
Number of Dies: 17
Elongation Per Draft: 24%
Drawing Step Cone Diameter: 200, 132, 87.5, 58 mm dia
Enter: 3.5 mm (0.138 inch) dia.max
Finish: 0.35-1.25 mm dia. (,014 – .049 inch (was producing 0.950 and 0.682 mm)
Speed: 25.6 to 35.5 m/sec
Motor: 75 Kw (100 hp) 440 V
