Ref: 59A-291 – Euroalpha R3-1.2+R3-1.5, 9 Die Aluminum Rod Drawing/Shaving Line (Year 2014)

Aluminum Rod Drawing/Shaving Line
Complete, Installed and operational

Includes:
Rotating 1700mm Diameter Coil Pay-off
Shaftless reel Pay-off SV Model-1080
Vertical 450mm Pulley Diameter Dancer

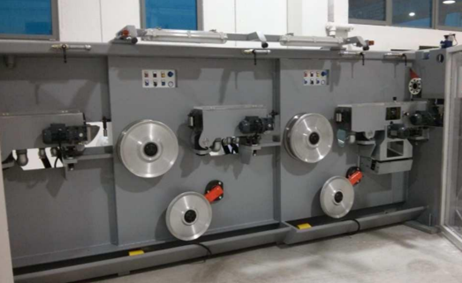

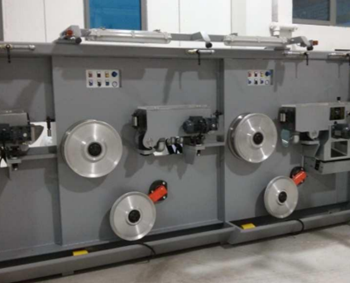

2 Die No Slipping Section + 1 Die Shaving Section

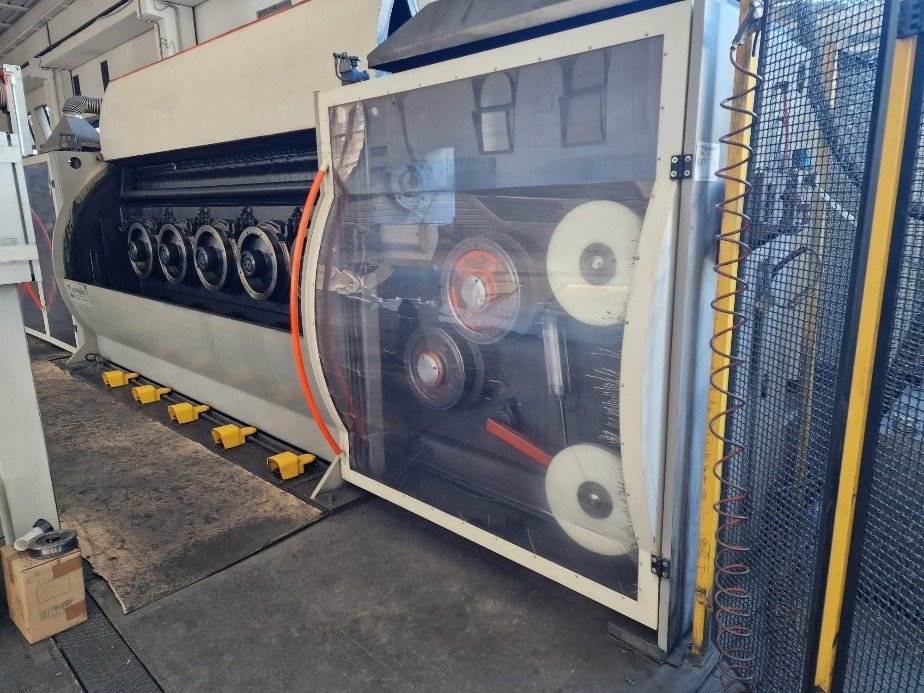

6 Die Steel Capstan Section
Horizontal Spooler Model DS1080
Electrical Control Cabinet

Manufacturer: Euroalpha
Model: R3-1.2+R3-1.5
Year of Manufacture: 2014
Number of Wires: 1
Number of Dies: 9 Total (2 Anti Slip) (1 Shaving) (6 Steel Capstan)
Wire Material: Aluminum
Wire Elongation: 5% to 33%
Slippage Control Range:  0% to 10%
Capstan Diameter: 450 mm
Draw Ring Diameter: 450 mm
Draw Ring Roller Diameter: 300 mm
Sensitive Pulley Diameter: 400 mm
Die Size: ø43 mm x 27 mm (others available upon request)
Tank Capacity: 1000 lbs. Coolant/Lubricant 800 liters

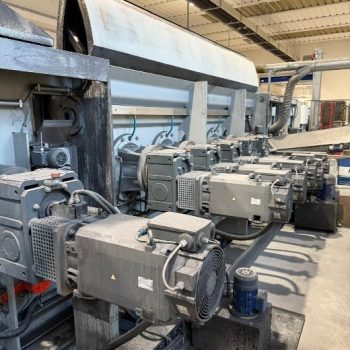

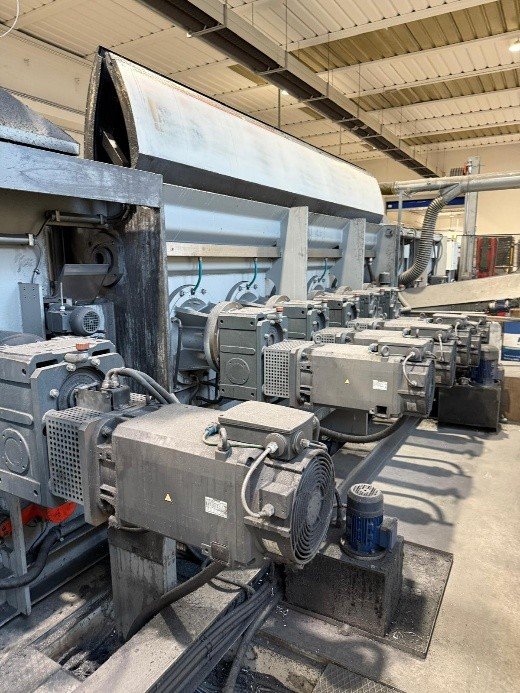

Capstan Motors: (AC) 31 kW
Rotary Die Holder Motor: (AC) 0.25 kW
Machine Weight: 11,500 kg Section + 16,500 kg Section
Noise Level: 82 dB(A) with background noise ≤ 70 dB(A)
Consumption: Coolant: 1500 l/min – Water for coolant exchanger*: 550-800 l/min
