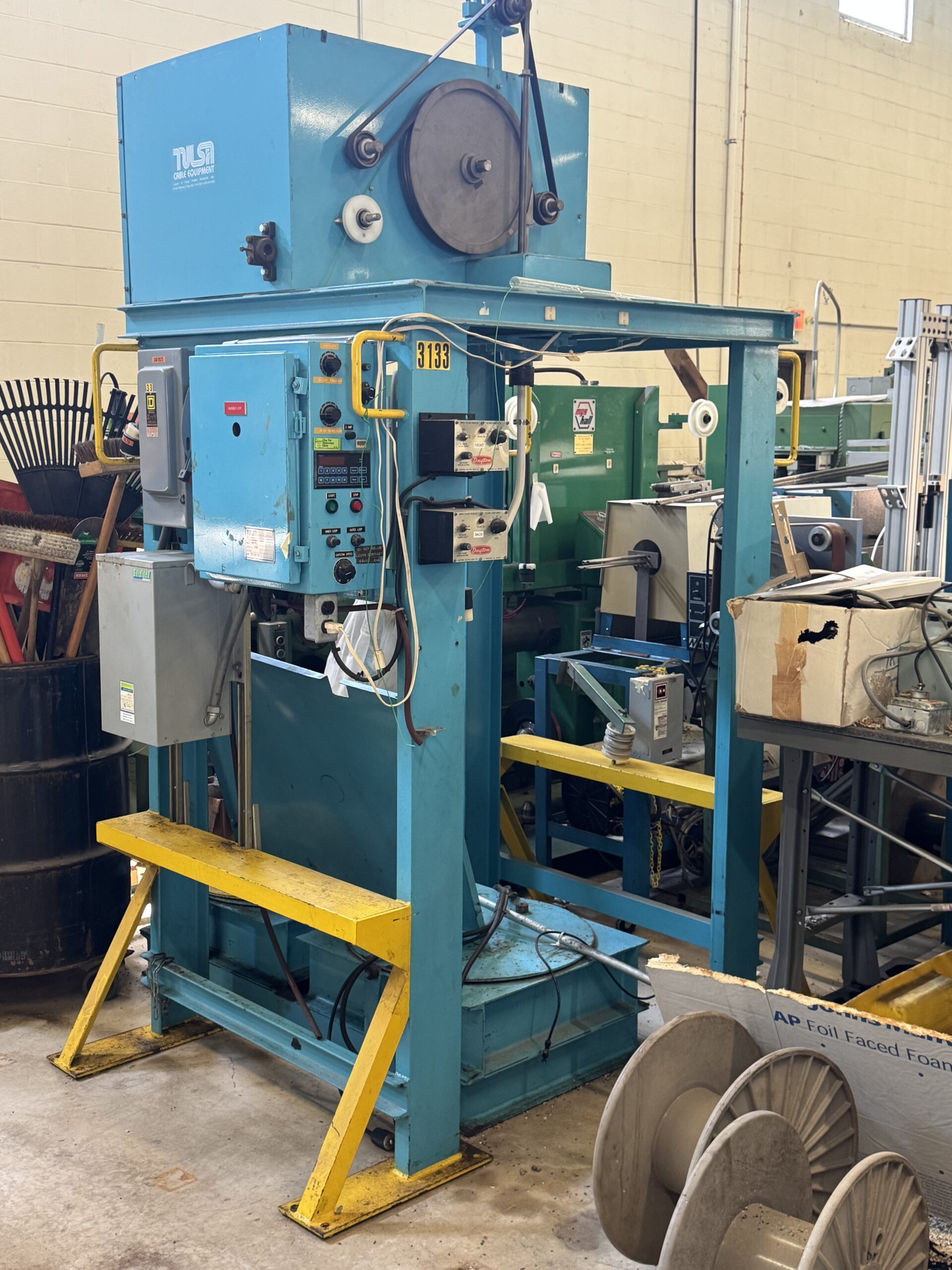

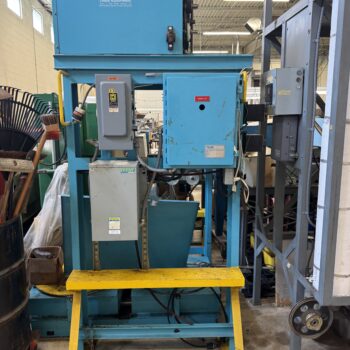

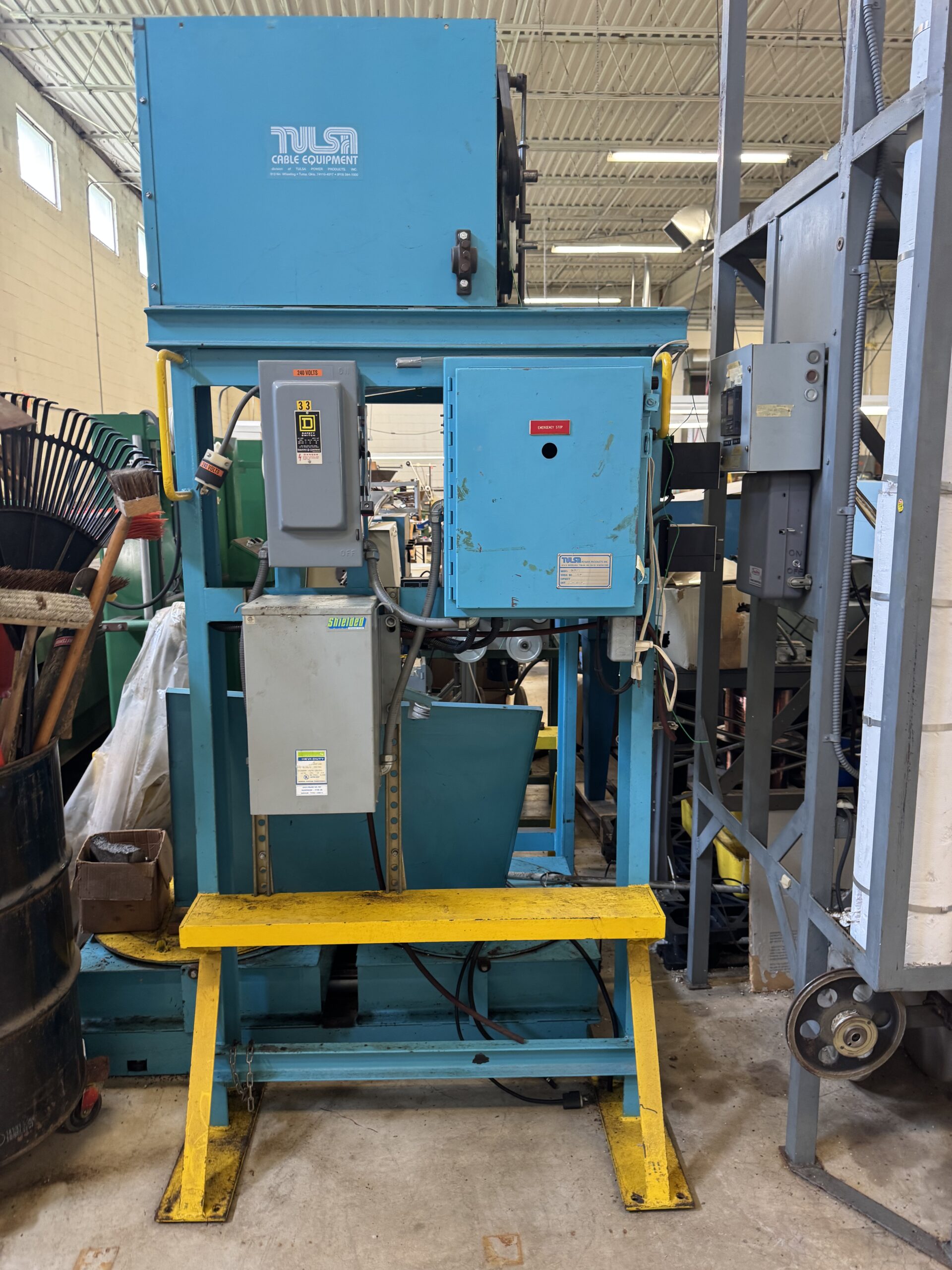

Ref: 52B-103 – Tulsa DPT-23, Single Head Barrel Packer

Barrel Packer

Includes:
Pneumatically actuated accumulator
Dual variable speed rotating turntables, to provide rosette patterned lay
Pneumatic drum transfer for continuous filling operation
Machine mounted operator control station

Manufacturer: Tulsa
Model: DPT-23
Material: Stranded or solid, bare or insulated, copper or aluminum wire
Wire Diameter Range: #26 to #12 AWG (0.4 to 2.0 mm)
Speed: 2500 FPM (760 m/min)
Package Size:  23” outside diameter x 14” inside diameter x 41” high max
Package weight: 1000 lbs max
Motor: 2 HP DC main motor, 1725 rpm, with tach feedback
Electrics: 240-480 V / 3Ph / 60 Hz
