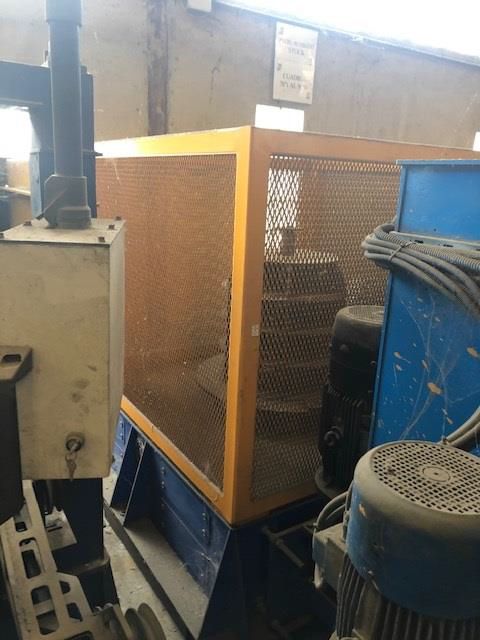

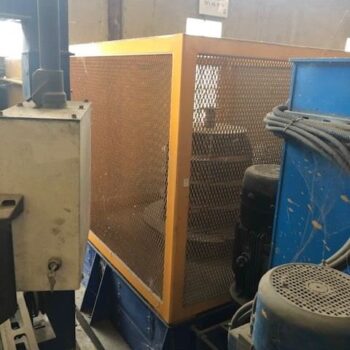

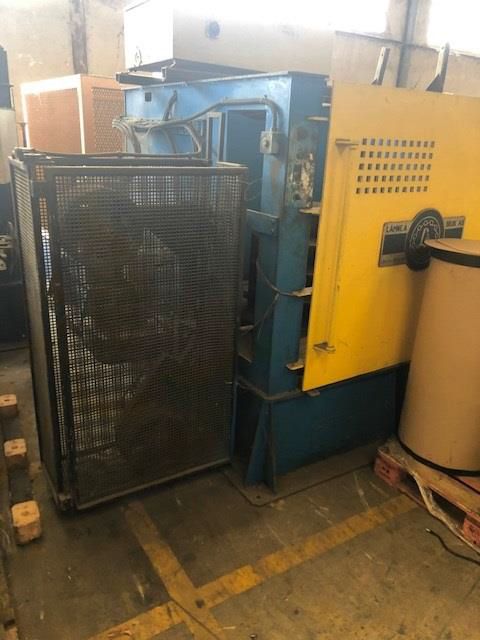

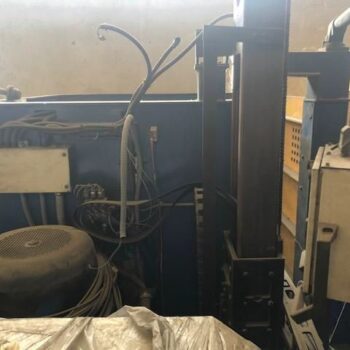

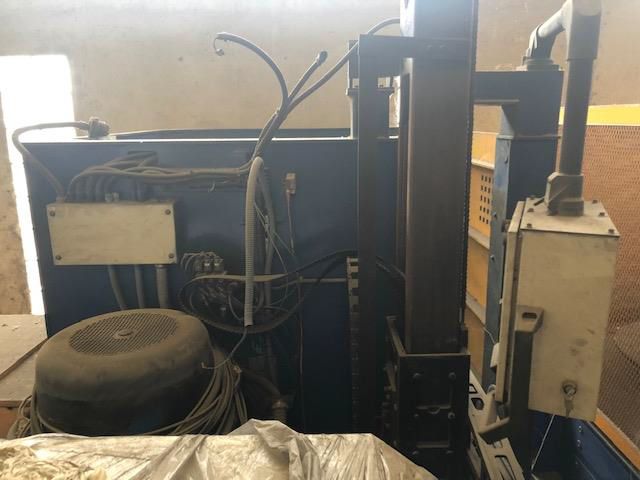

Ref: 43-187 – Lamnea Bruk DSPM 5000, 1250mm Automatic Vertical Shaftless Rewind Line

Automatic Vertical Shaftless Rewind Line

Includes:
Vertical Spooler (Model DSPM-5000)
Payoff (Model DSPS-5000)

Manufacturer: Lamnea Bruk
Model: DSPM 5000
Year of Manufacture: 2000
Wire Diameter Range: 0.118″ – 0.197″ (3 – 5 mm)
Line Type: Single vertical spooler system
Maximum Line Speed: 49 ft/sec (15 m/s)
Motor Power: ~100 HP (75 CV)
Maximum Spool Weight: 11,000 lbs (5000kg)
Maximum Spool Diameter: 49″ (1,250 mm)
Spool Core Diameter: 28.7″ (730 mm)
