Ref: 50C-158 – Gauder,12+18+6+1 Wire, Rigid Stranding Line

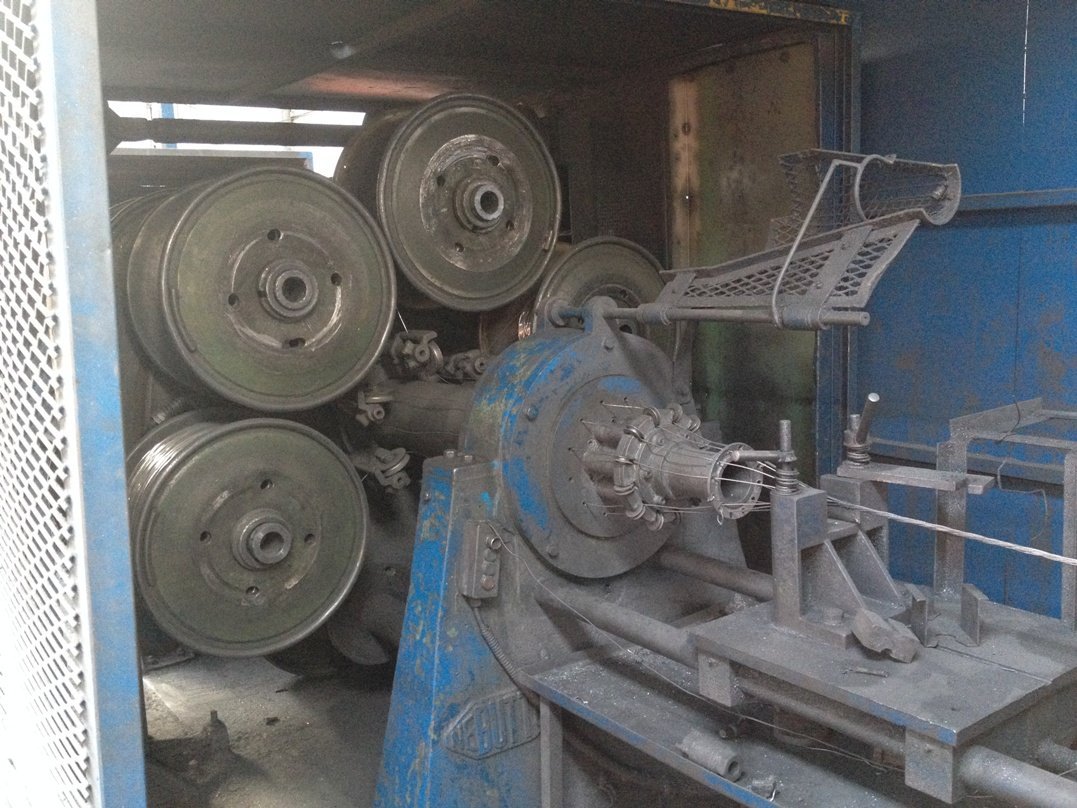

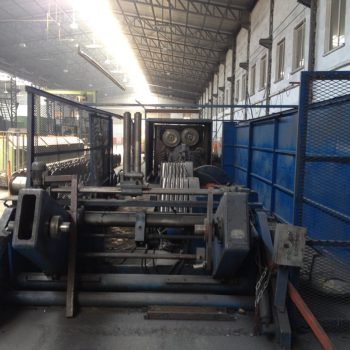

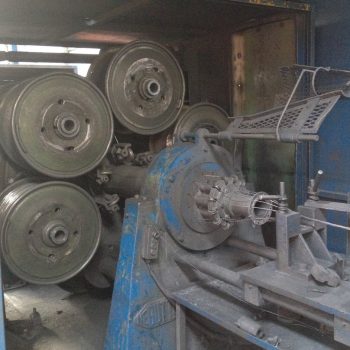

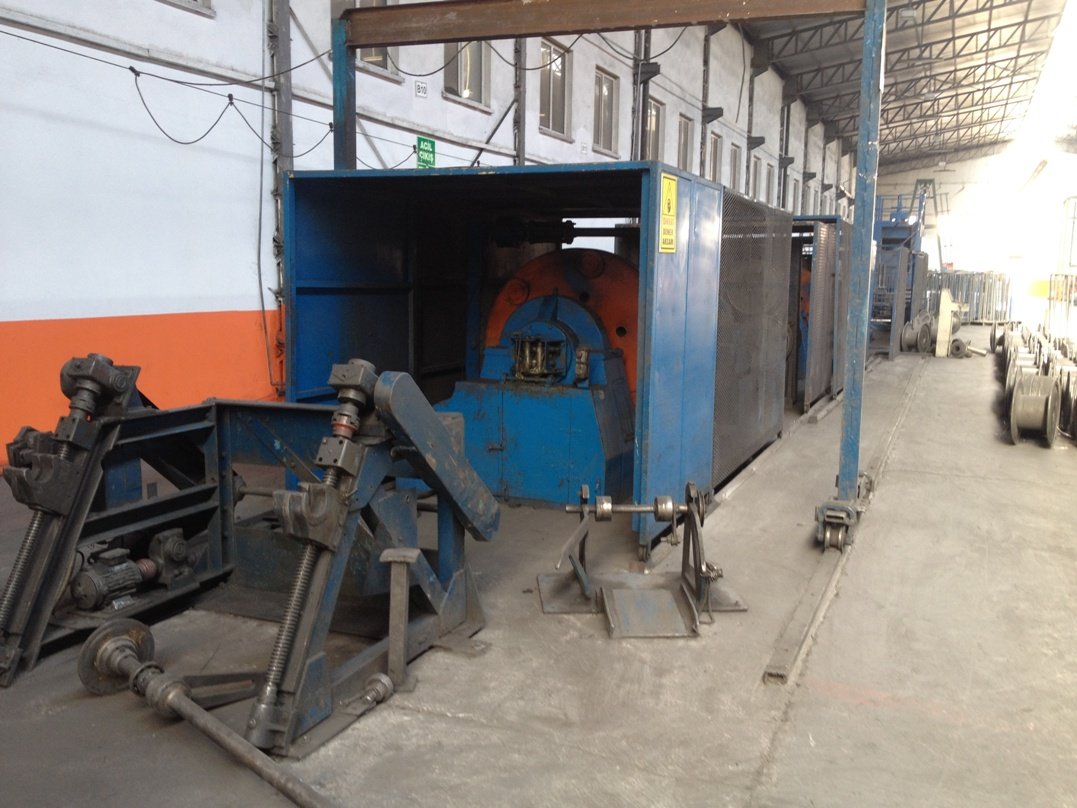

Rigid Stranding Line
Includes:
Double wheel 1300 mm capstan 8+8 grooves
1600mm Pay-off
1600mm Take-up
Manufacturer: Gauder
Number of Wires: 37
Configuration: 6+12+18+1
Reel Dimensions: 630mm Diameter overall width: 325 mm, traverse width:280 mm, bore: 140 mm Arbor 125 mm
Tension control: Manual, fine adjustment
Cage speeds: 130 RPM (Alu)
Line drive: 44 kW – 1500 RPM
Direction: Left to right
For more pictures, further specifications, questions, or if you cannot find what you are looking for, please contact us.
