Ref: 50C-157 – Cortinovis,12+18+1 Wire, Rigid Stranding Line

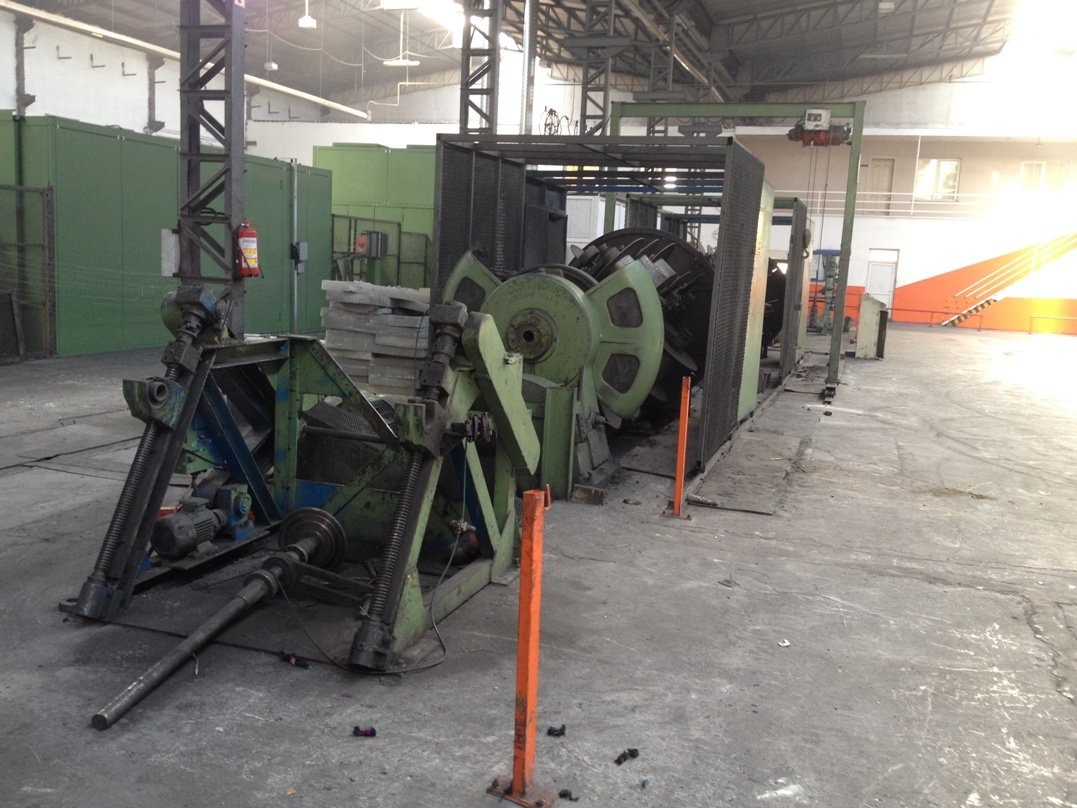

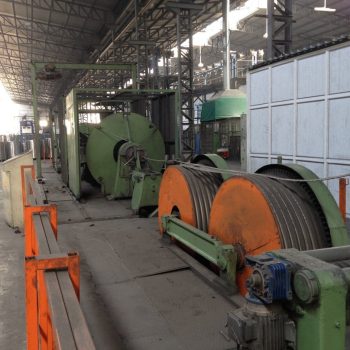

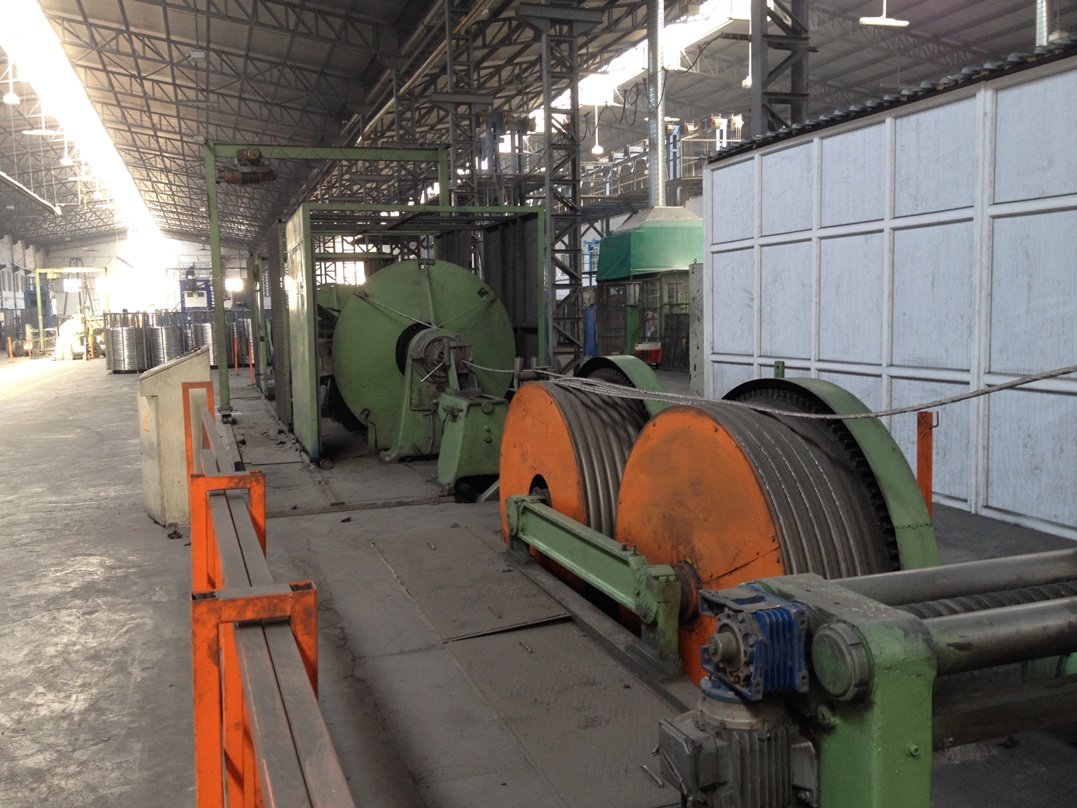

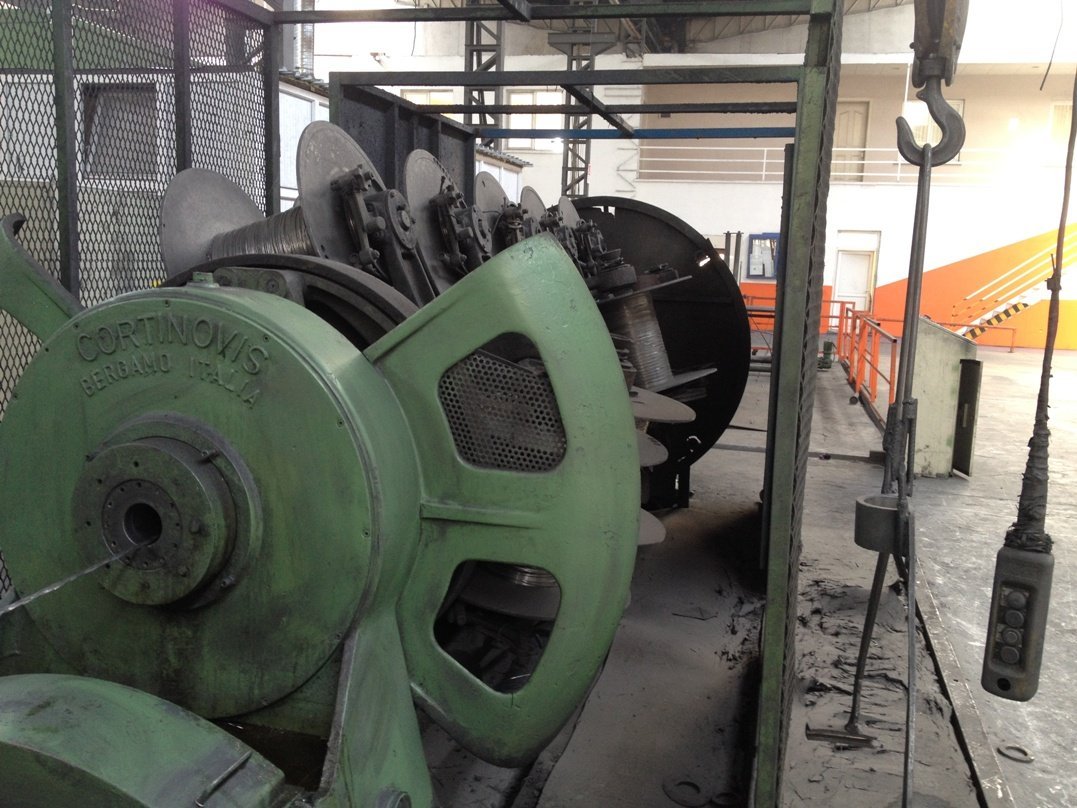

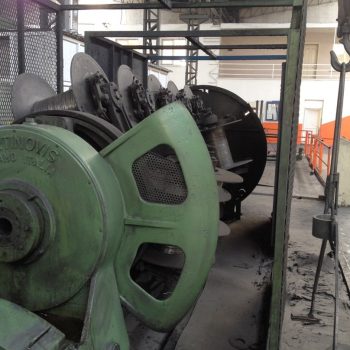

Rigid Stranding Line
Includes:
Double wheel 1500 mm capstan 6+6 grooves
1600mm Pay-off
1600mm Take-up
Manufacturer: Cortinovis
Number of Wires: 30
Configuration: 12+18+1
Reel Dimensions: 630mm Diameter, Barrel dia.: 250 mm Width on flange: 420 mm Arbor: 60 mm
Wire tension: Steel band brake
Tension control: Manual, fine adjustment
Cage speeds: 250 RPM (Alu)
Line drive: 44 kW – 1500 RPM
Direction: Left to right
For more pictures, further specifications, questions, or if you cannot find what you are looking for, please contact us.
