Ref: 50A-197 – Hefei Smarter Group, 6+1 Wire, Planetary Stranding Line, Year 2020

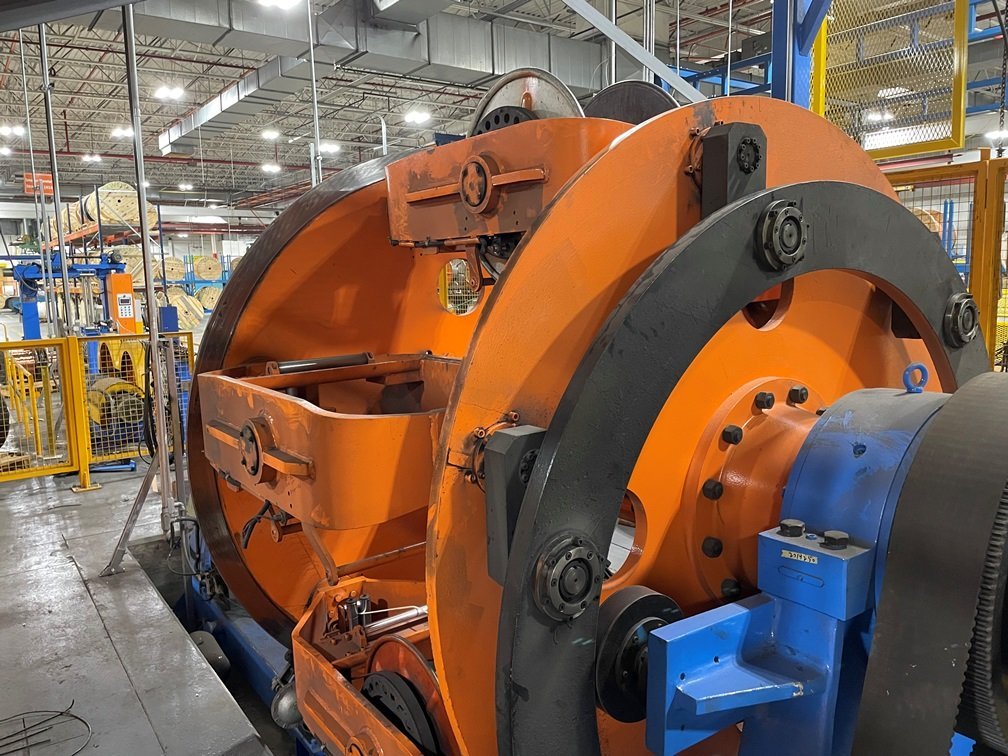

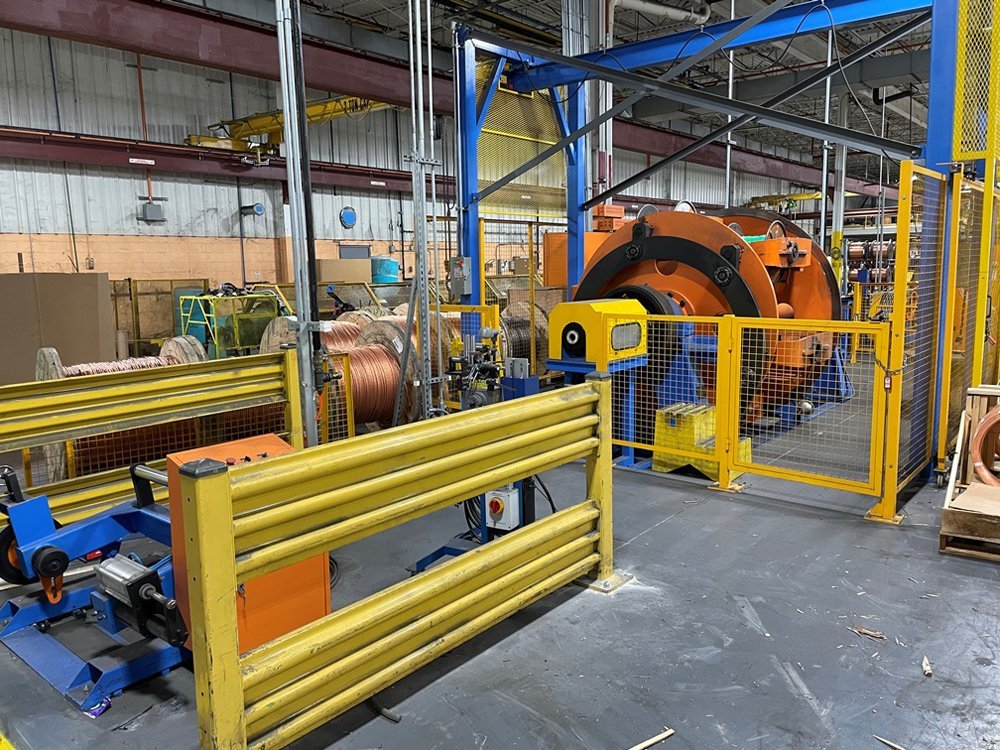

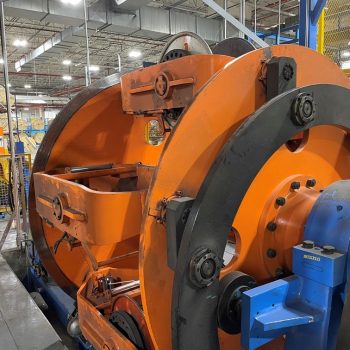

Planetary Stranding Line
Low hours. Still installed

Includes:
Closing Die Holder
Proton non-contact length and speed gauge

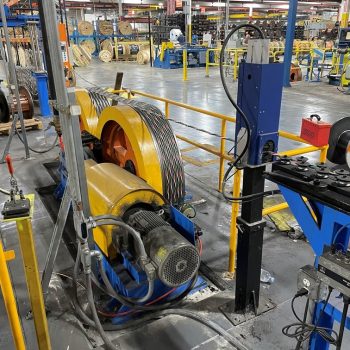

Dual Wheel Capstan 1250 mm diameter, U-Groove, 7.5 kW motor AC, 500 kg pull force
Portal type take-up: 800 to 1600 mm diameter reel, 5T max weight, Motors: Pintle drive 5.5 kW AC, traverse: .75 kW, lifting 1.1 kW, clamping 1.1 kW
Siemens touch screen control

Manufacturer: Hefei Smarter Group
Year of Manufacture: 2020
Number of Wires: 7
Configuration: 6+1
Reel Diameter: 630 mm
Wire Diameter Range: Max ind. Wire diameter 0.574 mm Maz finished OD 20 mm
Pitch: 54 to 887 mm step-less
Cage RPM: 39-89
Line Speed: 4.8 to 34.6 m/min
Cage Motor: 55 kW AC

For more pictures, further specifications, questions, or if you cannot find what you are looking for, please contact us.
