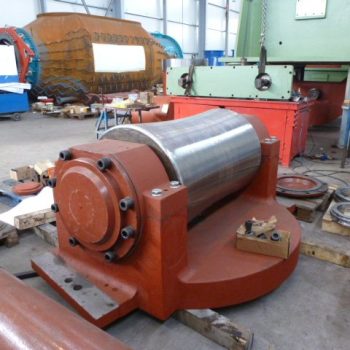

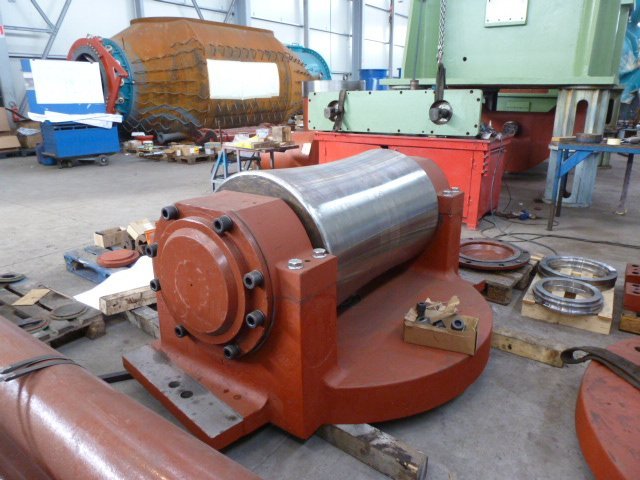

Ref: 49-242 - Kierserling WRPH 230, 230mm Bar Straightener - Image 2

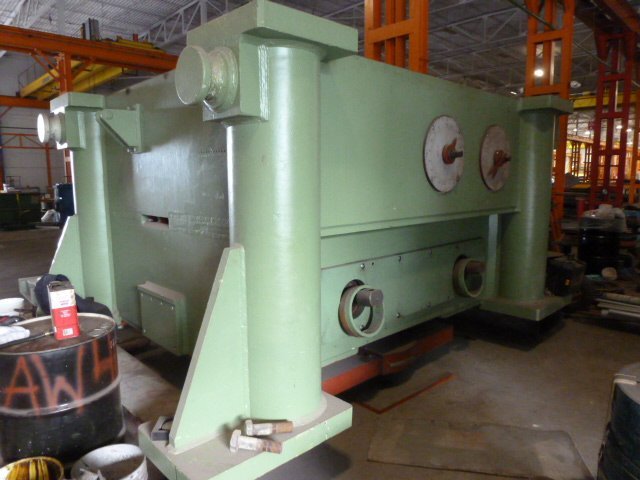

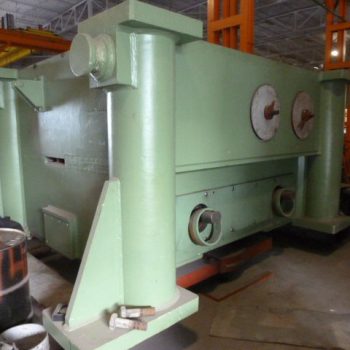

Ref: 49-242 - Kierserling WRPH 230, 230mm Bar Straightener - Image 3

Ref: 49-242 – Kierserling WRPH 230, 230mm Bar Straightener

Bar Straightener

Manufacturer: Kieserling
Model: WRPH 230
Year of Manufacture: 1978
Size Range Diameter: 30 mm to 230 mm (low and medium carbon) 30 to 180 mm (high carbon 1000 N/mm2)
Speed: 0 to 20 m/min
Angular Adjustment: 10 to 20 degrees
Straightening force: 450 Ton (hydr. Cushioned) and 580 ton (not cushioned)
Roll Diameter: 700 mm
Motors: Two (2) 200 kW, DC, 700/1400 rpm, 460 V

For more pictures, further specifications, questions, or if you cannot find what you are looking for, please contact us.
