Ref: 44-180 – DEM Four Stand High Carbon Steel Flattening Mill Line, Year 2012

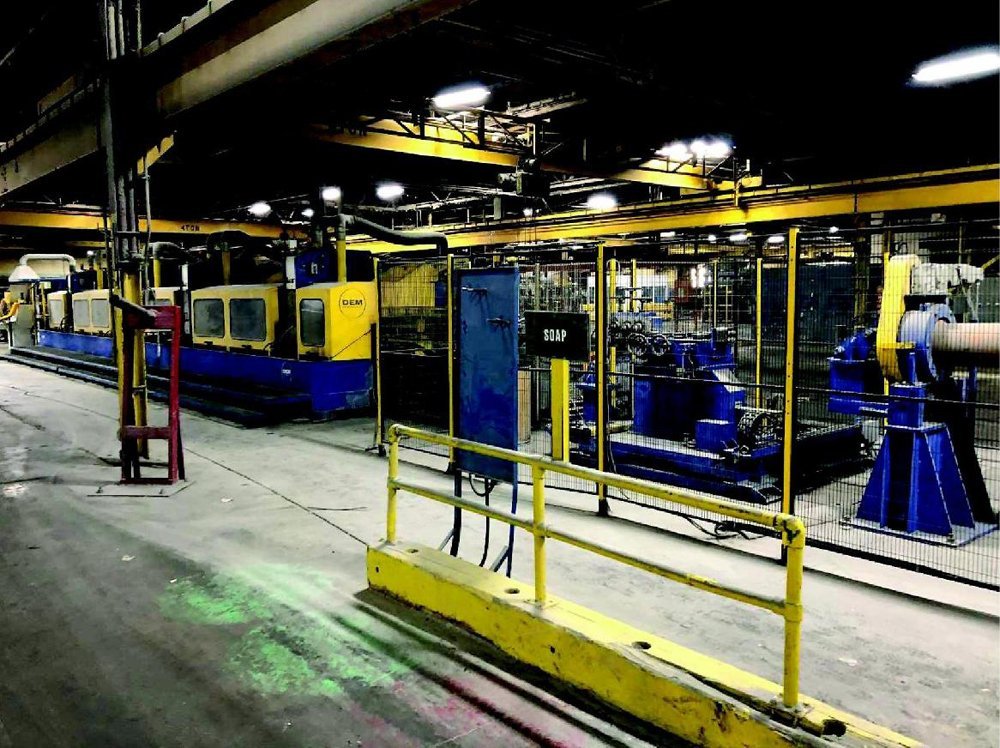

Four Stand High Carbon Steel Flattening Mill Line
Still Installed and operational

Includes:
Horizontal Pay-off for wire coils 3000 kg (6,614 lbs)
Pre-Straightener: 6 vertical rolls X 6 Horizontal Rolls, Roll dimensions: 110 mm dia. X 30 mm thick
Dancer arm speed control roll diameter 150 mm (5.9 inch) X 50 mm (2 inch)

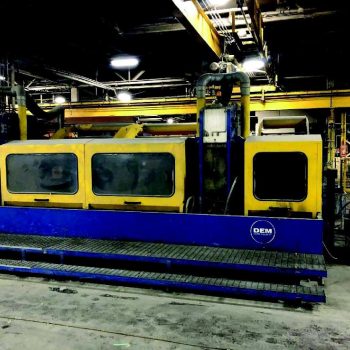

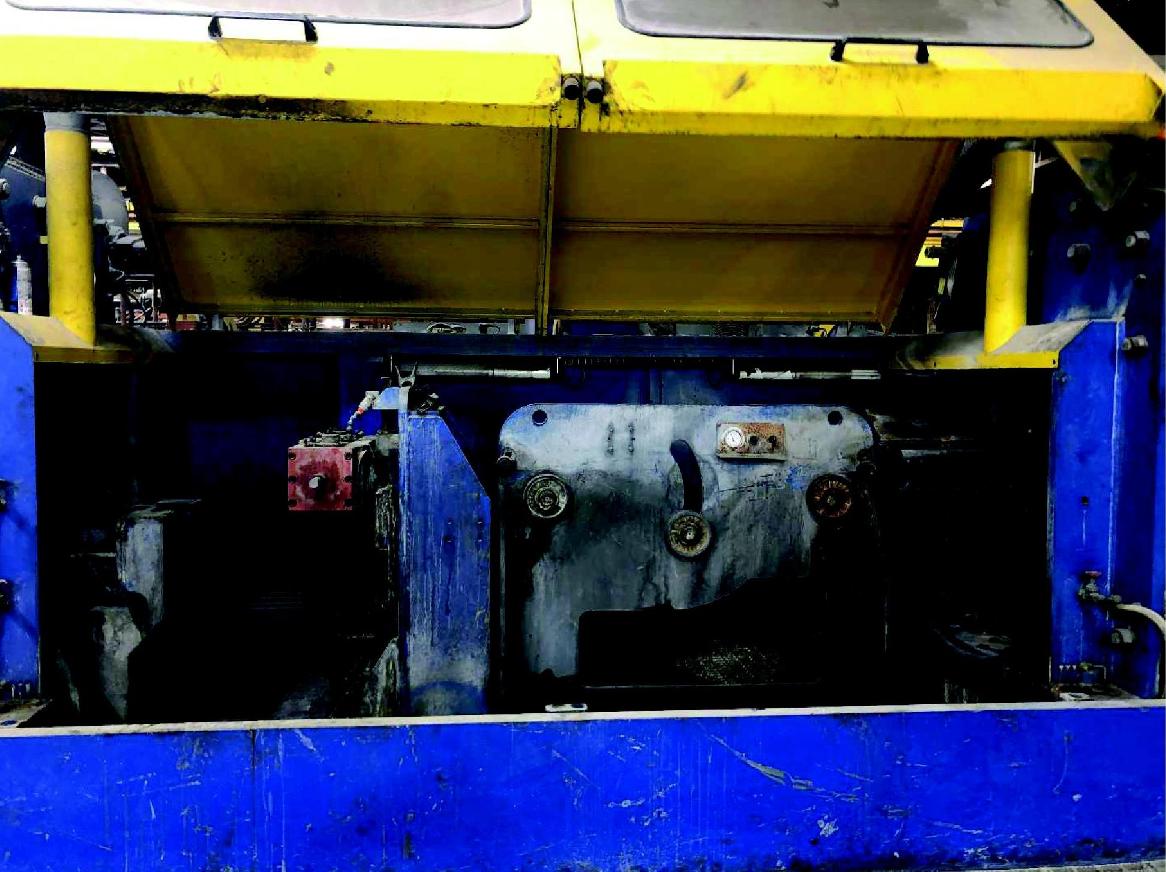

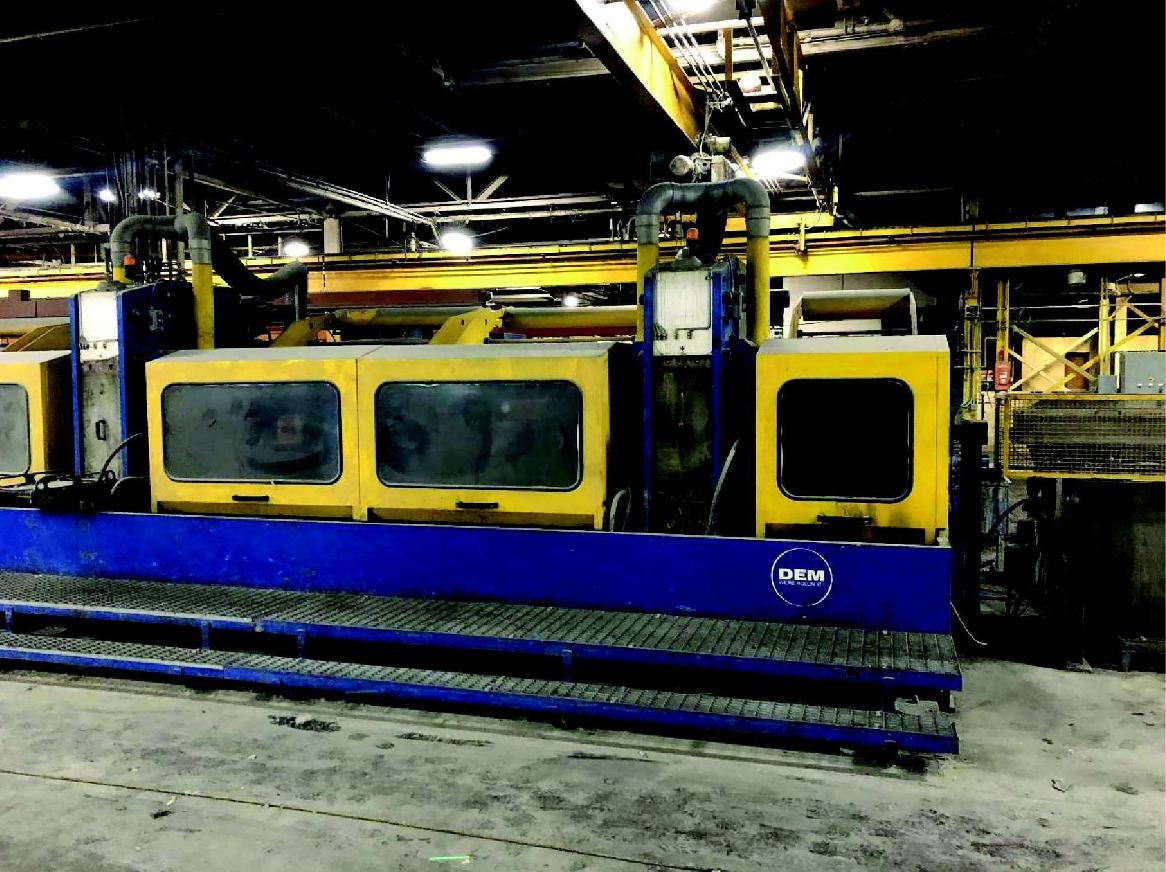

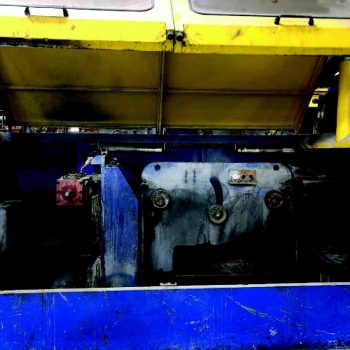

4 Roll Stands
Edger Profile Rolling Unit 80 kN, 180 mm dia X 60 mm
Wire straightener
Laser Dimensional Control Unit 34 mm X 34 mm, Minimum size 0.15 mm
Rust preventer application
Horizontal Spooler Coil Dimensions 1525 mm (60 inch) Diameter, 3000 kg (6614 lbs),

Manufacturer: DEM Rolling Technology (Italy)
Year of Manufacture: 2012
Enter Wire Diameter Range: 6 to 13 mm (.236 to .512 inch) Diameter SAE 1060 Steel
Finish Examples: 8 mm X 4 mm, 18 mm X 5 mm (0.71” X 0.197”), 14 mm X 6 mm
Roll Diameter: 1 X 305 mm (12 inch) 3 X 280 mm (10 inch)
Roll Thickness: 150 mm (5.9 inch)
Motors: Rolls 1 and 2: 73 kW (98 HP) each; Rolls 3 and 4: 58 kW (78 HP) each
Rolling Load Capacity: 500 kn (112,000 lbs)
Speed: 5 m/sec (1000 fpm)
