Ref: 34-287 - EVG GRS102, Mesh Panel Welding Line, 8.5 foot Width
Ref: 34-287 - EVG GRS102, Mesh Panel Welding Line, 8.5 foot Width - Image 2
Ref: 34-287 - EVG GRS102, Mesh Panel Welding Line, 8.5 foot Width - Image 3

Ref: 34-287 – EVG GRS102, Mesh Panel Welding Line, 8.5 foot Width

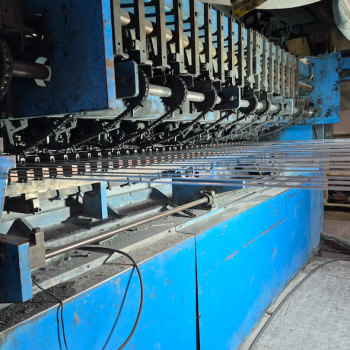

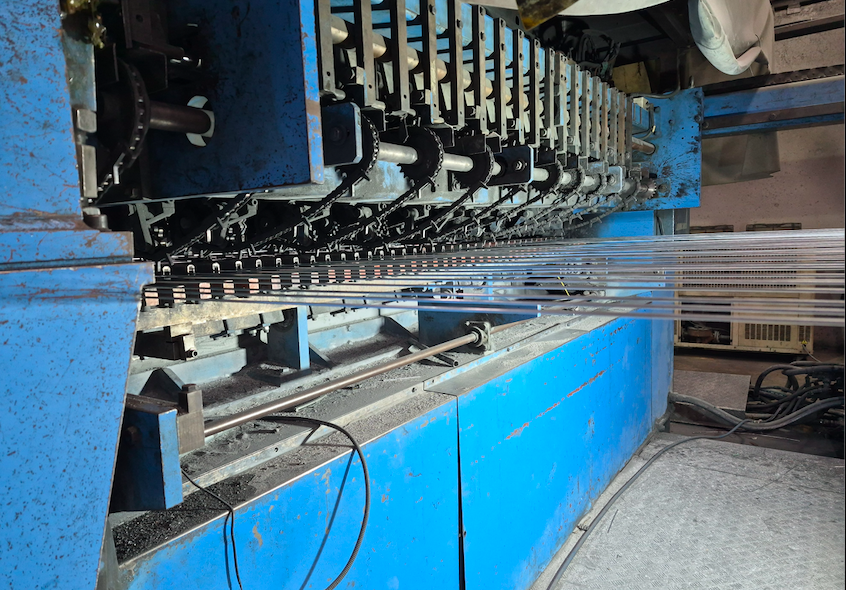

Mesh Panel Welding Line
Refurbished and modernized. Currently installed and in operation making 3D perimeter fencing.

Includes:

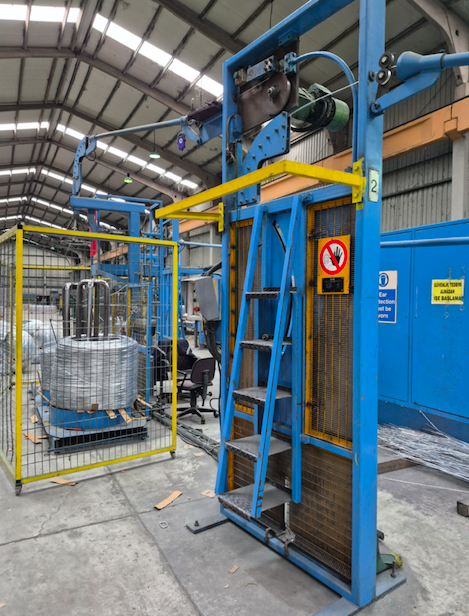

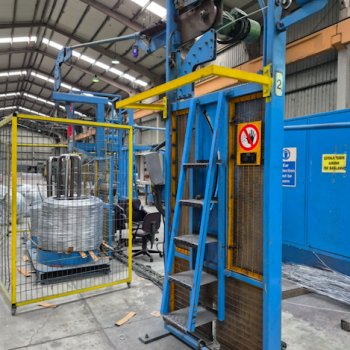

50 spools line wires payoff
4 spool double servo feeding system for cross wires
Hydraulic servo mesh carrier
Trimmer
Guillotine

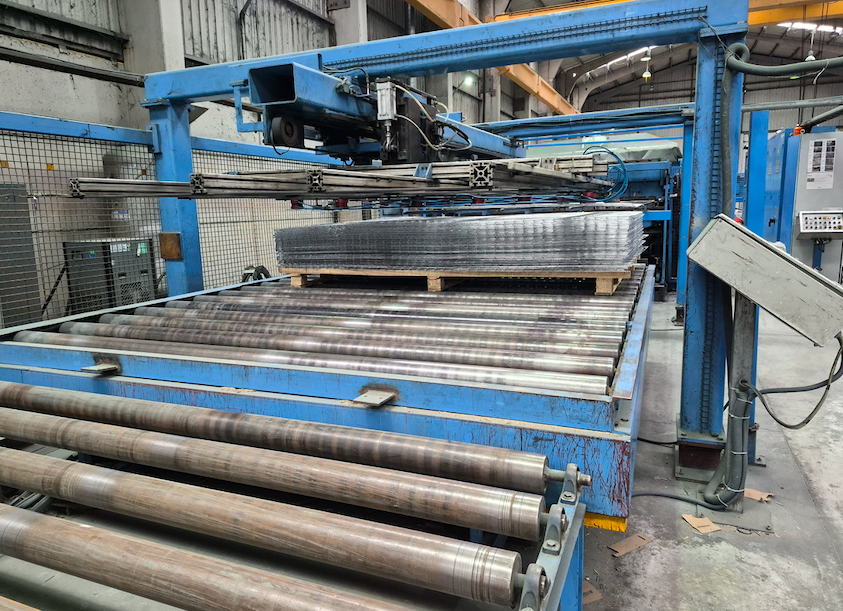

Mesh carrier, lift stacking, slat conveyor
Electrics and controls

Manufacturer: EVG
Model: GRS102 PolyWeld
Year of Manufacture: 1995
Mesh Width: 102 in (8.5 foot)
Line Wire Spacing: 1 inch minimum
Cross Wire Spacing: 1 inch minimum
Wire Diameter: 4mm
Spacing Control: Servo Controlled Cross Wire Spacing
Power Consumption: +- 720kVA

For more pictures, further specifications, questions, or if you cannot find what you are looking for, please contact us.
