Ref: 34-264 – EVG ATT102, Mesh Panel Welding Line, 2.75m Width, Year 2009

Mesh Panel Welding Line

Manufacturer: EVG
Model: ATT /102-PVD
Year of Manufacture: 2009
Cross Wire Diameter: 2.5 to 8 mm (.,098 to .315 inch)
Longitudinal Wire Diameter: 2.5 to 8 mm (.,098 to .315 inch)
Width Range: (cross wire length) 600 to 2750 mm
Length Range: 600 to 6100 mm
Cross Wire Pitch: for 2.5 to 4 mm diameter cross wire min 12.7 mm then variable
Longitudinal Wire Division: 2 inch
Line Wire: from coil
Cross Wire: from pre-straight & cut
Machine Speed: Standard: 110 to 130 welds/ min, tripple tier 55 to 65 welds per minute.
Wire Spool Weight: 900 Kg

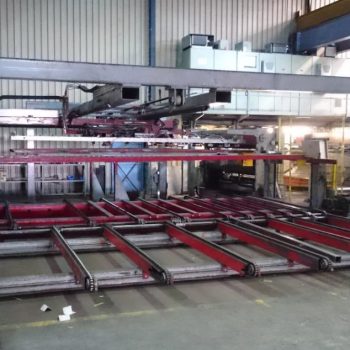

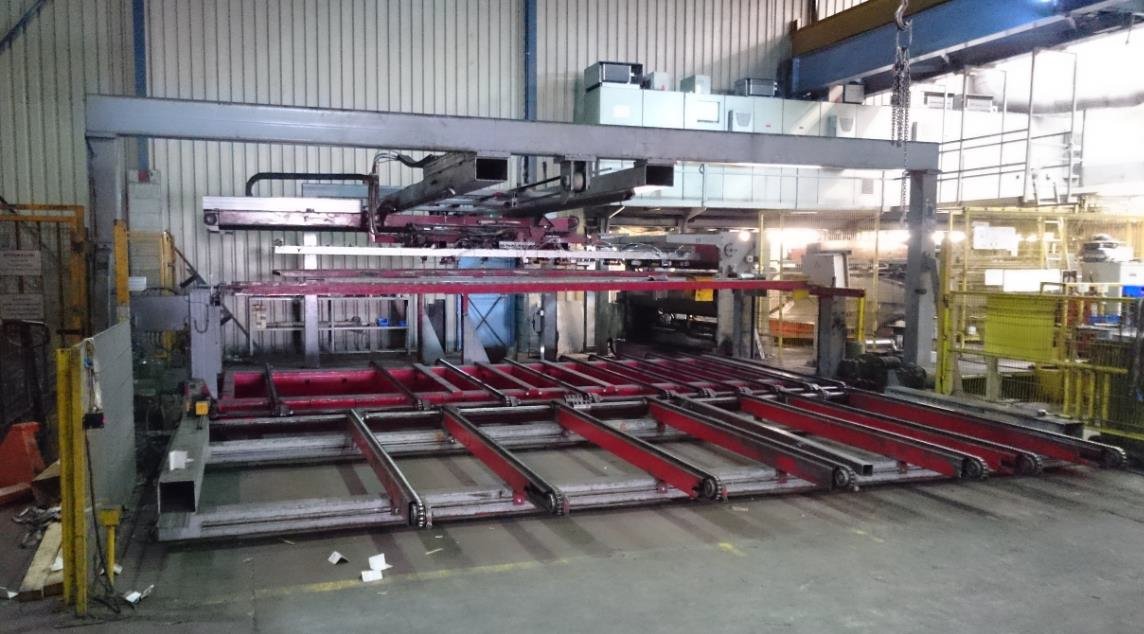

Stack Height: 700 mm
Roll diameter: 1000 mm
Roll Weight: 1000 kg
Transformers: at 50% ED: 1500 kva
Drive Power: 282 kva
Mains: voltage: 3 X 415 v frequency: 50 Hz
