Ref: 34-263 – EVG ATT126, Mesh Panel Welding Line, 3m Width, Year 2009

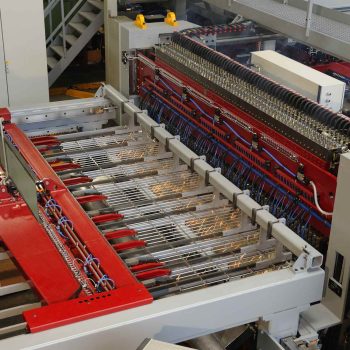

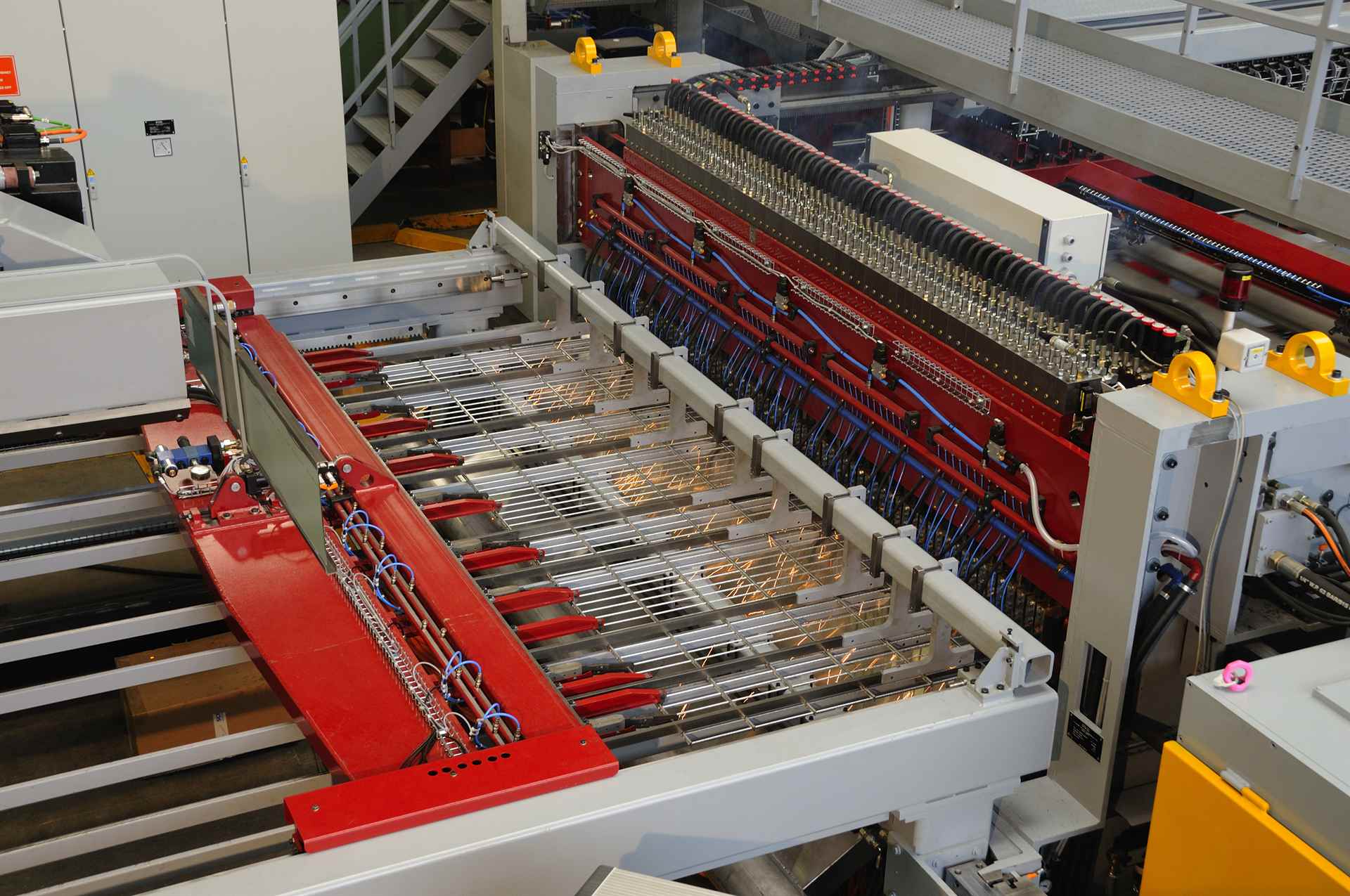

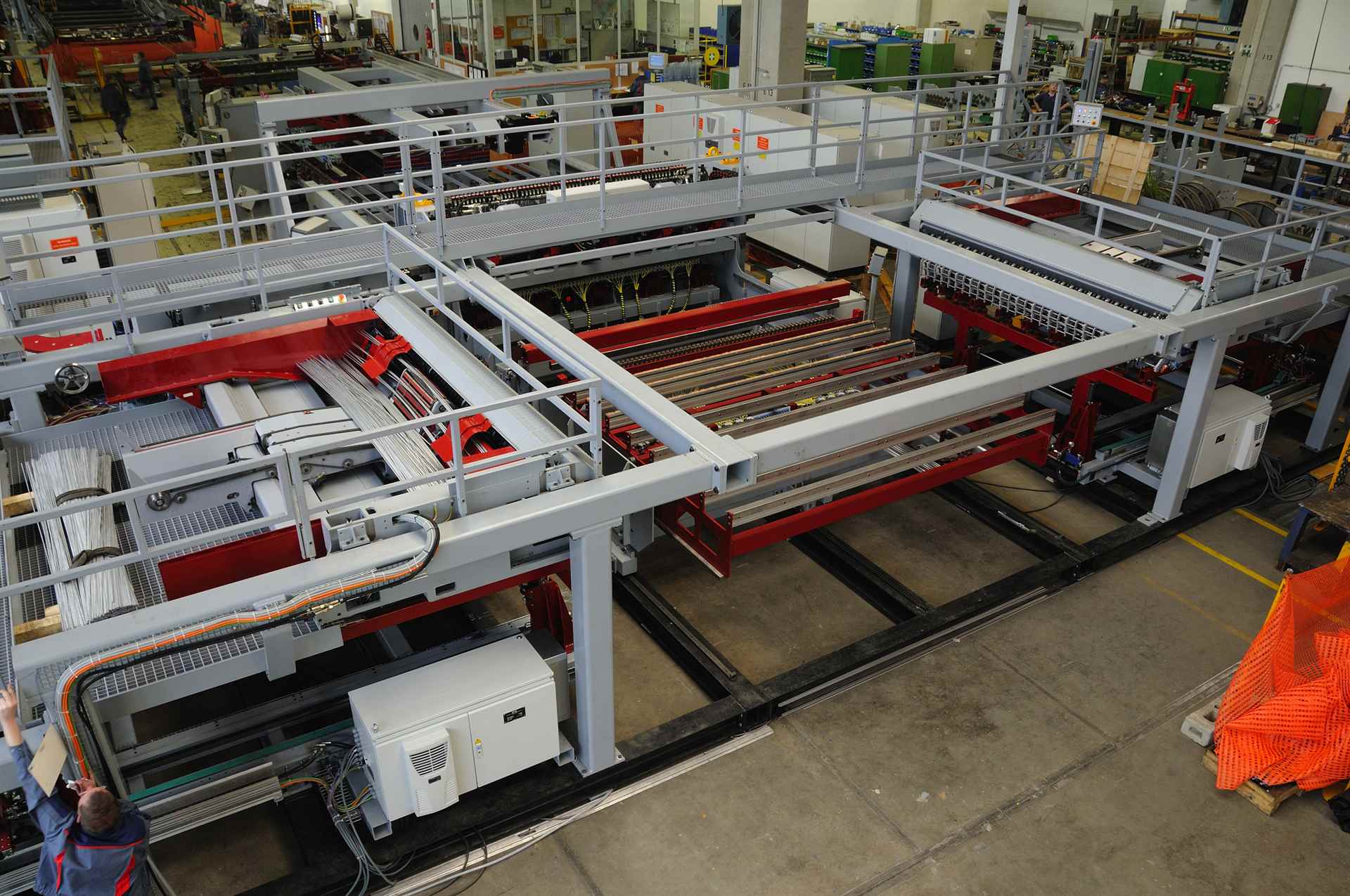

Mesh Panel Welding Line

Includes:
Two (2) Wafios R33 Straighten and Cut Machines

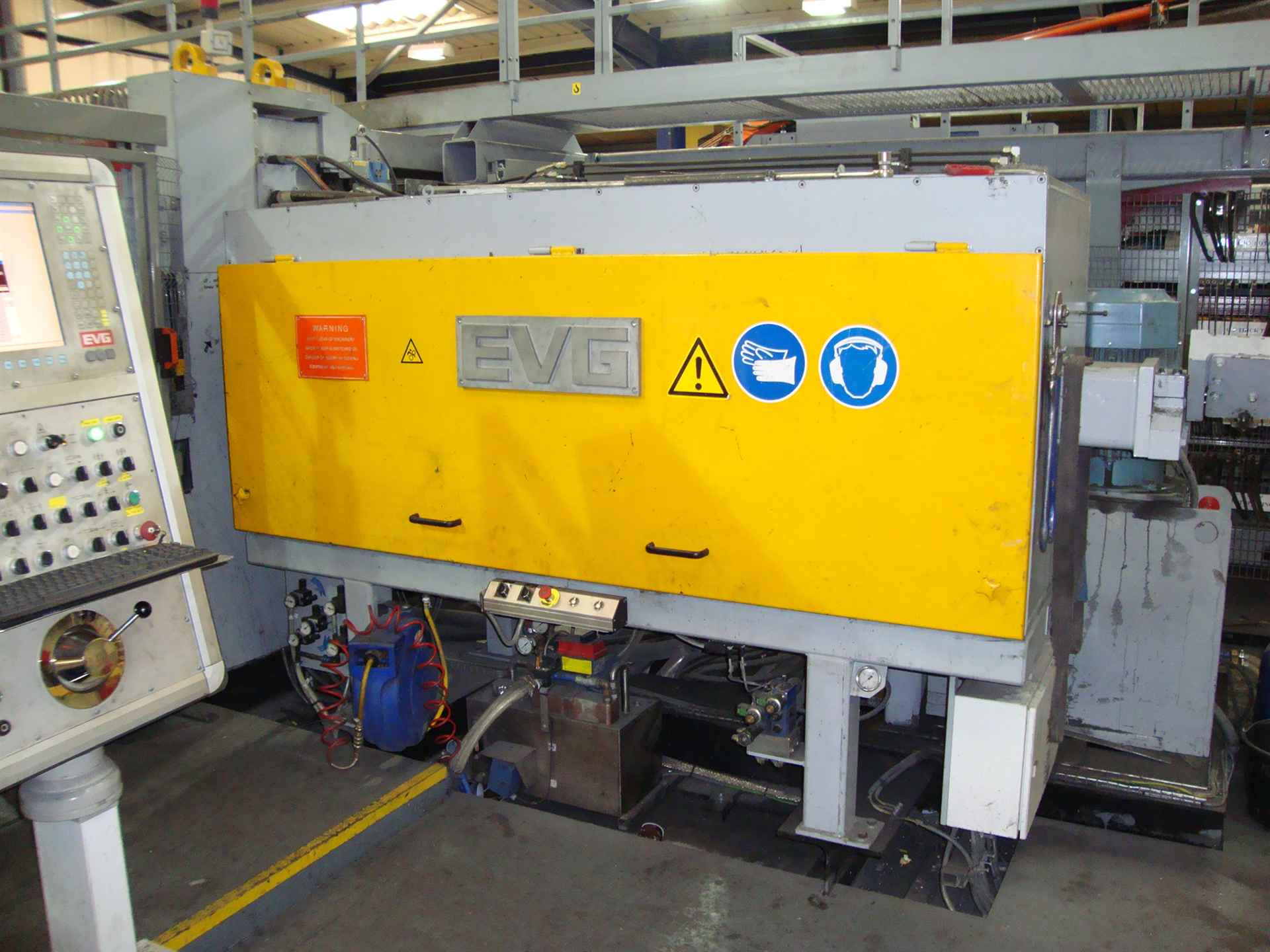

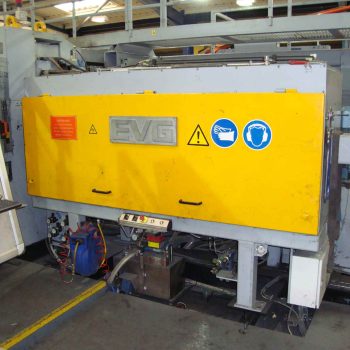

Manufacturer: EVG
Model: ATT 8/126-PV
Year of Manufacture: 2009
Cross Wire Diameter: 3.5 to 8 mm (.138 to .315 inch)
Longitudinal Wire Diameter: 3.5 to 6 mm (.138 to .236 inch)
Width Range: 1500 to 3000 mm
Length Range: 1000 to 3000 mm
Cross Wire Pitch: 25 mm to 300 mm
Longitudinal Wire Division: 50 mm

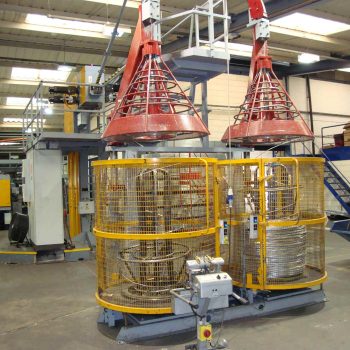

Line Wire: from coil
Cross Wire: from pre-straight & cut
Welding Power Spacing: 50mm cross + Long wire = 22 mm
Machine Speed: 150 cross wires per minute
Wire Spool Weight: 160 Kg
Stack Height: 650 mm
Stack Weight: 4000 kg
Transformers: at 50% ED: 1650 kva
Drive Power: 339 kva

For more pictures, further specifications, questions, or if you cannot find what you are looking for, please contact us.
