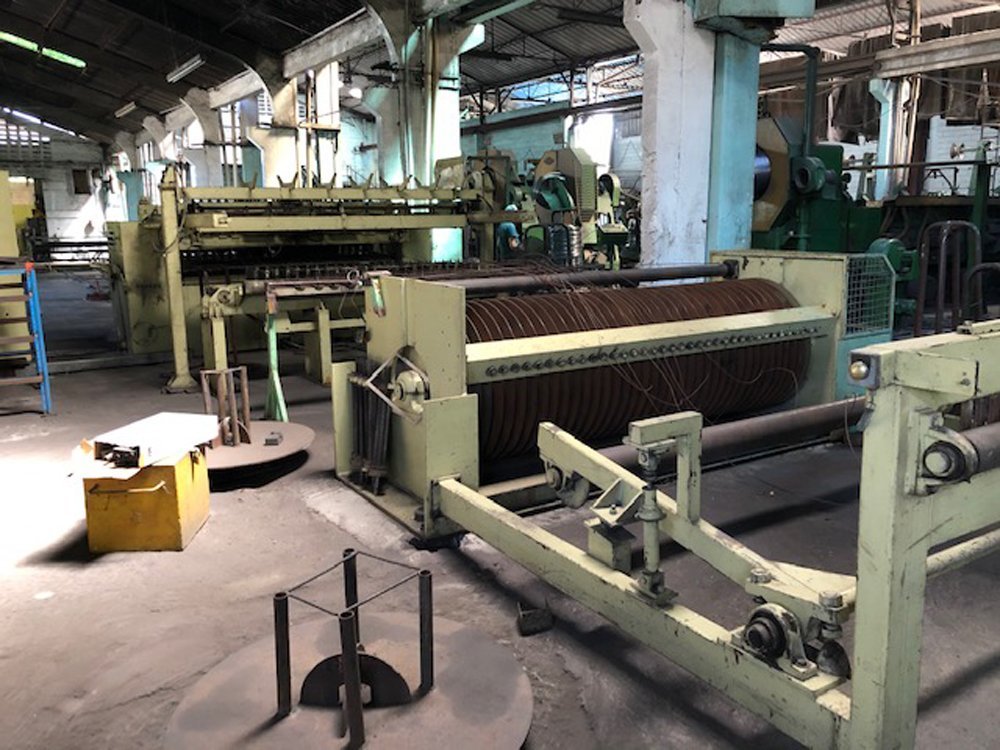

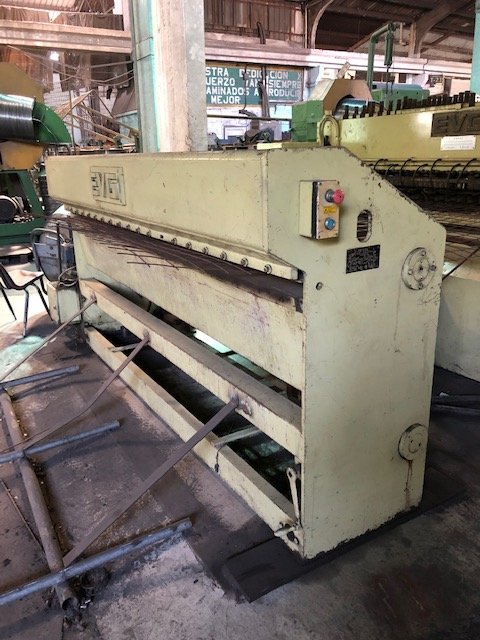

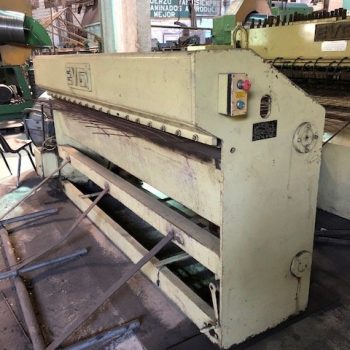

Ref: 34-250 – EVG G32S/102, Mesh Roll Welding Line, 2600mm Width
Mesh Roll Welding Line
Manufacturer: EVG
Model: G 32S/102
Wire Diameter Range: 12 ga to 6/0 ga ( .105 to .462 inch) (2.7 mm to 12 mm)
Welding Width: Max. 102 inch (2600 mm) (108 inch cross wire length max)
Longitudinal Wire Spacing: 4, 6, 8, 10, 12 inch intermediate values steplessly adjustable
Cross Wire Spacing: 2 inch to 16 inch Steplessly adjustable
At Line Wire Spacing of 4 inch: 27 wires of 2 ga
At Line Wire Spacing of 6 inch: 18 wires of 2/0 ga
Max Welding Capacity: at line wire spacing of 4 inch .850 inch combined wire diameter, 6 inch .959 inch combined wire diameter
Speed: 70 cross wire per min
