Ref: 34-240 – EVG KFR804, Fine Mesh Roll Welding Line, 84in Width

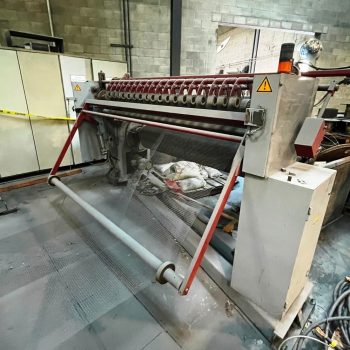

Fine Mesh Roll Welding Line
Very Low hours less than 200
Includes:
Pay-off
Mesh Welder
Mesh roll take-up
Computer controls
Manufacturer: EVG
Model: KFR804
Year of Manufacture: 2002
Wire Diameter Range: 18 to 25 ga. . (0.062 to 0.020 inch) (1.4 mm to .4 mm)
Welding Width Range: 40 inch to 84 inch
Cross Wire Pitch: 0.25 inch to 2 inch (step .25 inch)
Line Wire Pitch: 0.25 inch to 2 inch (step .25 inch)
Speed: 60 to 160 CW/min (single cross wire and double cross wire)
Cross Wire: from coil100 kg

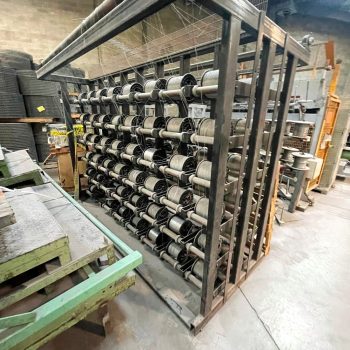

Longitudinal Wire: from spools
Mesh roll diameter: 600 mm, Max weight of roll: 400 kg
Electrical: Nominal output of welding transformers at 50% I.D.: 250 kVA,
Power of drive motors: 11 kVA, Mains Voltage: 3 X480, 60Hz
For more pictures, further specifications, questions, or if you cannot find what you are looking for, please contact us.
