Ref: 34-207 – EVG GR 65, Mesh Roll Welding Line, 65in Width

Mesh Roll Welding Line

Includes:
Line wire straightener
Line wire interlock device
Edge Trimming and slitting Shear device
Mesh Tensioning equipment

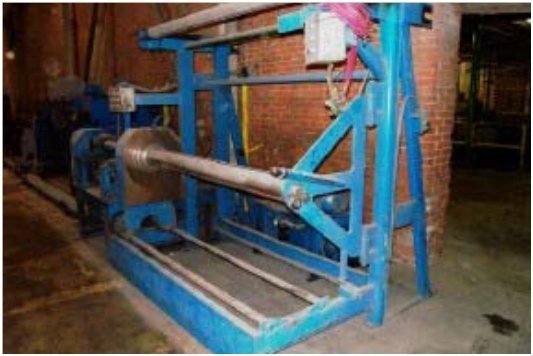

Roll Take-up
Controls

Manufacturer: EVG
Model: GR 65
Year of Manufacture: 1979
Wire Diameter Range: 16 ga to 10 ga (0.064 inch – 0.128 inch) (1.6 mm – 3.25 mm)
Welding Width: 62 inch
Working Width: 65 inch (1650 mm) (length of cross wire)
Longitudinal Wire Spacing: 1 inch min (Steplessly Adjustable)
Cross Wire Spacing: ½ inch minimum (Steplessly adjustable)
Cross Wire: fed from hopper.
Speed: 100 Cross Wires/min. Max.
Power Load: (50% I.D.): 170 kVA, 3 phase
Power of Drive motor: 7.5 kW
Cooling Water: 2.5 gal/min
Minimum Working Pressure: 20 pounds/ sq. inch
