Ref: 27-306 – Bywater 65mm 24:1 and 45mm 24:1 Plastic Extrusion Line

Plastic Extrusion Line

Includes:

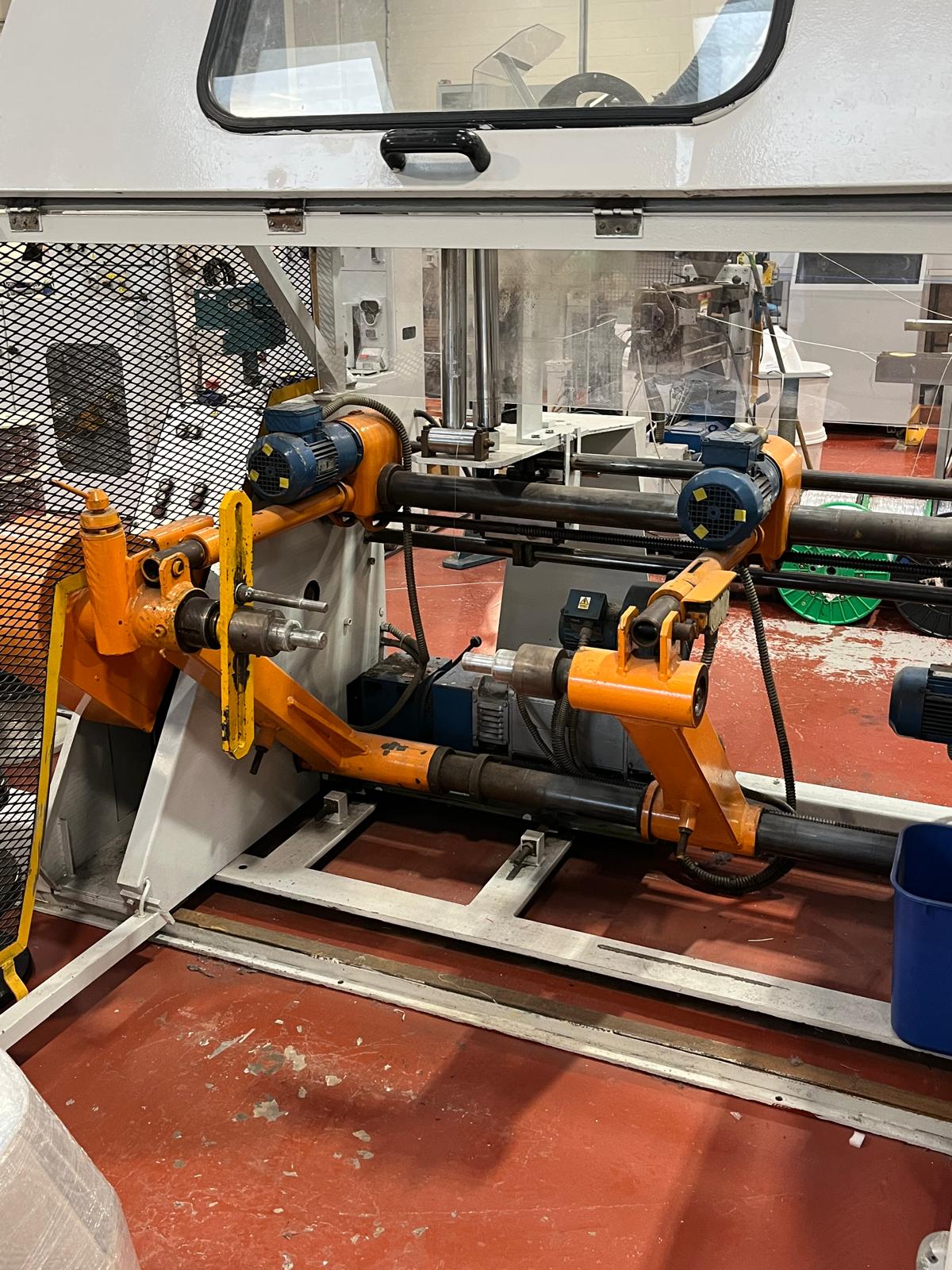

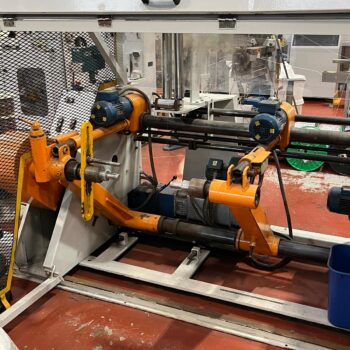

Pay-off Dual Shaftless powered cantilever design 300 to 900 mm flange diameter

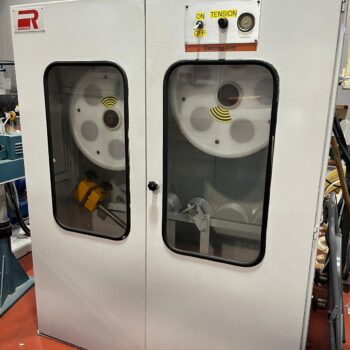

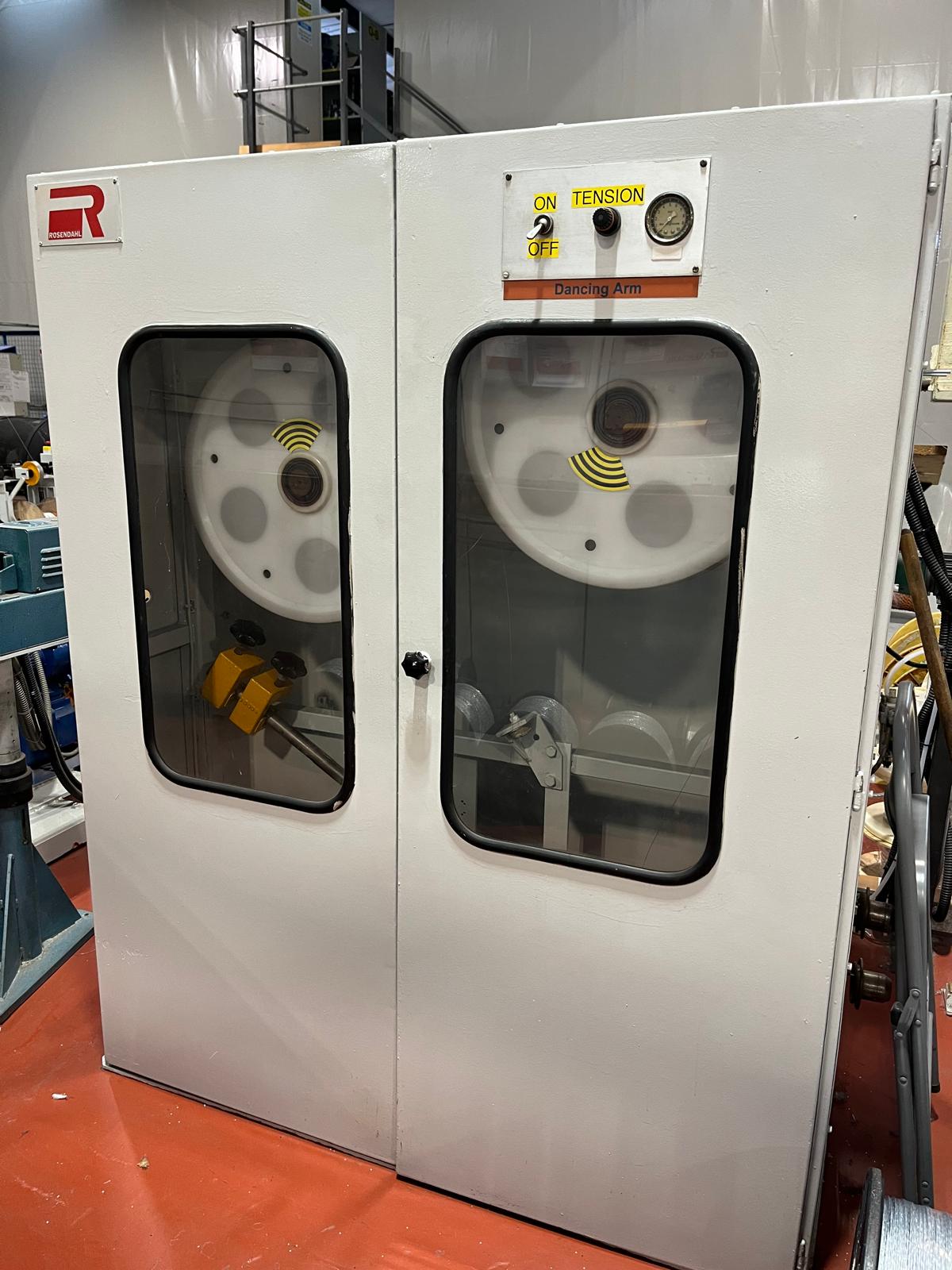

Pay-off Dancer
Dryer

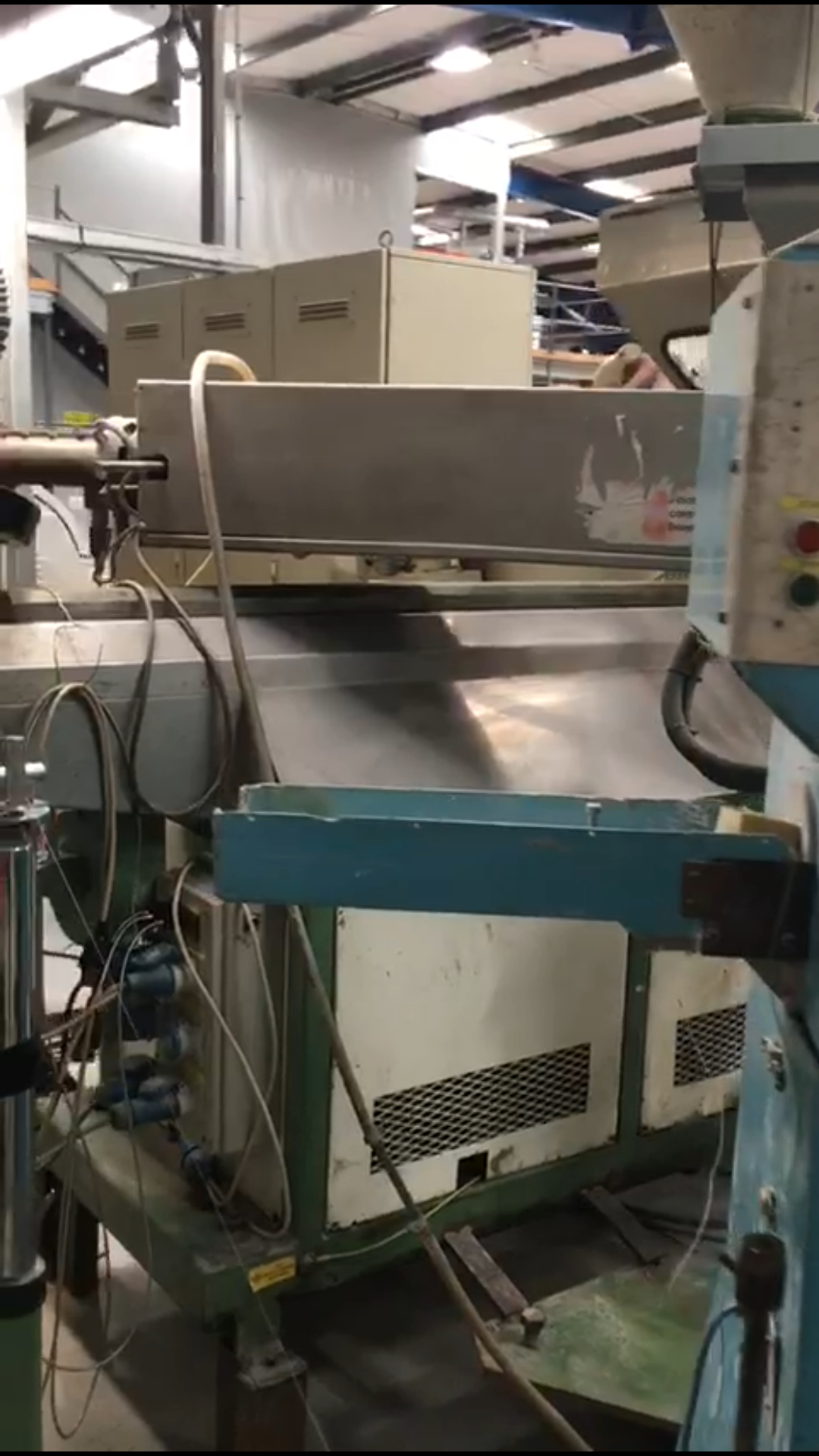

Extruder
Cooling trough 10mts water bath,10mts Air cool trough
Zambello Piggy Back single/double stripe
Spark Tester
Take-Up

Manufacturer: Bywater / Zambello / Beaumont
Main Screw Diameter: 65 mm
Main Extruder L/D Ratio: 24/1
Main Barrel Heating: 5 zones

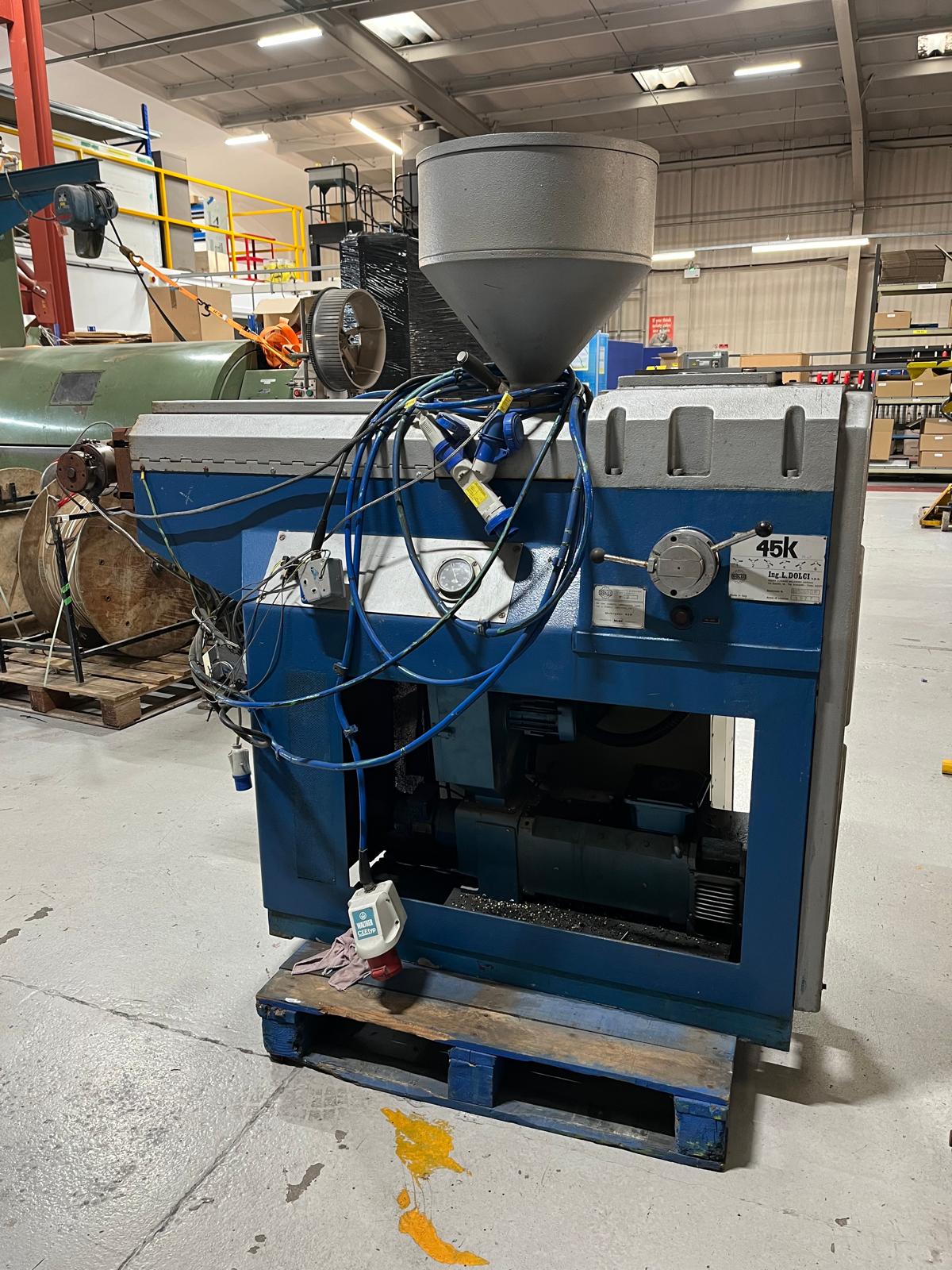

Secondary Screw Diameter: 45mm
Secondary Extruder L/D Ratio: 24/1
Secondary Barrel Heating: Low Temp
Type of screws available: PVC Screw& Low smoke Screw/General Purpose
Conductor Size range: 0.4 to 6.5 mm

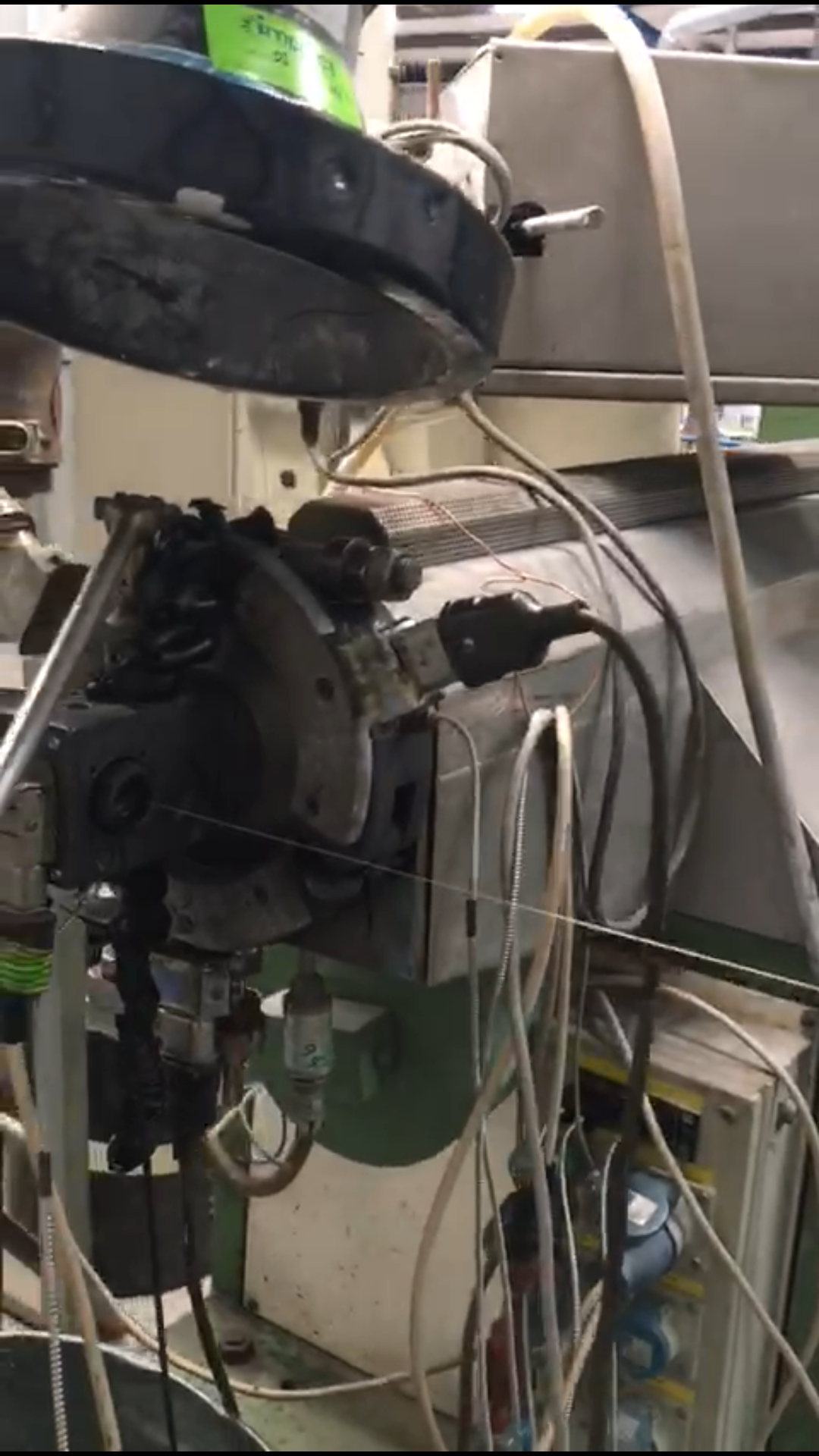

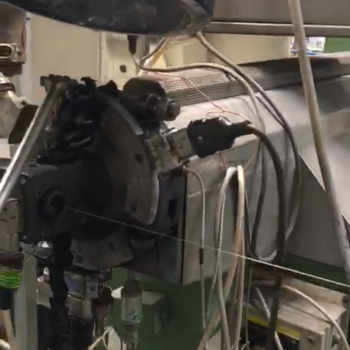

Tooling type: (2 heads) 4/6 Erocarb / 2nd head Unitek
