Ref: 40-144 – MHD Rod Galvanizing Line 60-200m/min

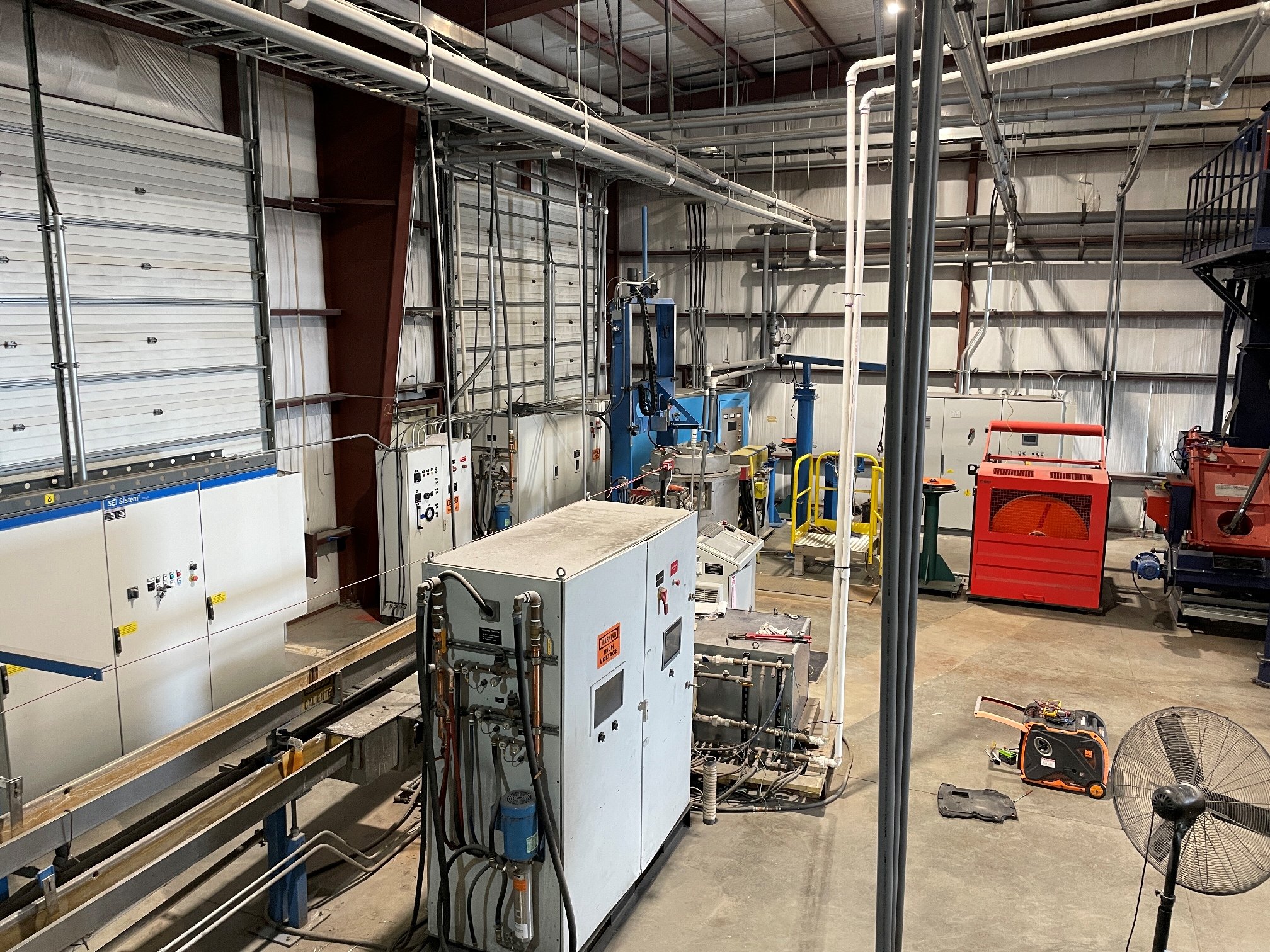

Rod Galvanizing Line

Includes:
SVD-2 double vertical payoff and accumulator RA 600.
RD 140/2 Heavy duty two plane straightener, hydraulic closure
Intermediate two plane precision straightener mounted at the end of the RD140/2
KK1200, Dual split wheel back tension capstan with U-groove wheels
Precision kink detector and E-Stop fitted with R-6 carbide die
Vibration damping (3) roll stand, integral to blaster
Four wheel 40hp(30kW) three/five pass shot blaster
Align and damp (5) roll stand
Inductoheat heating system
Radiation thermometer and signal conditioner.

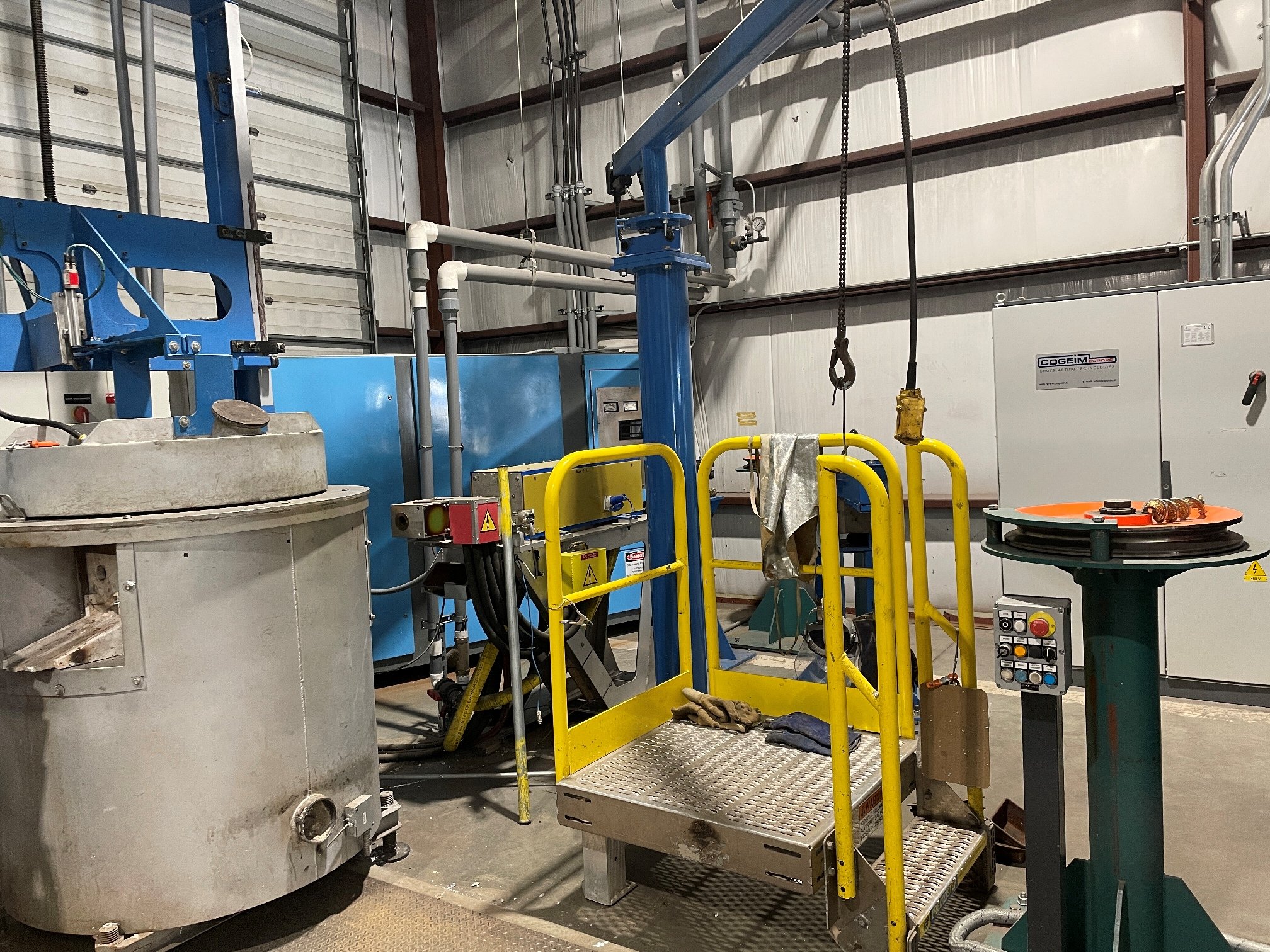

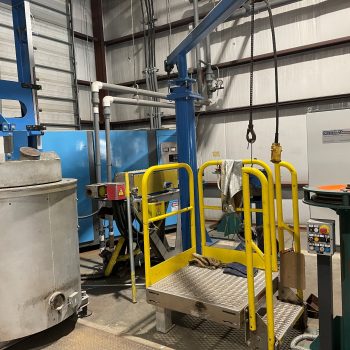

Galvanizing machine, horizontal type
Two stage rod quench system with over/under S.S. trough
Two plane laser micrometer at (3) roll stand
DA600 Dancer & position transducer for rod/wire tension regulation.

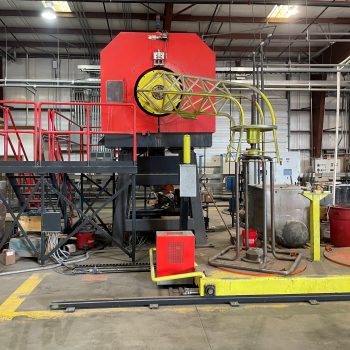

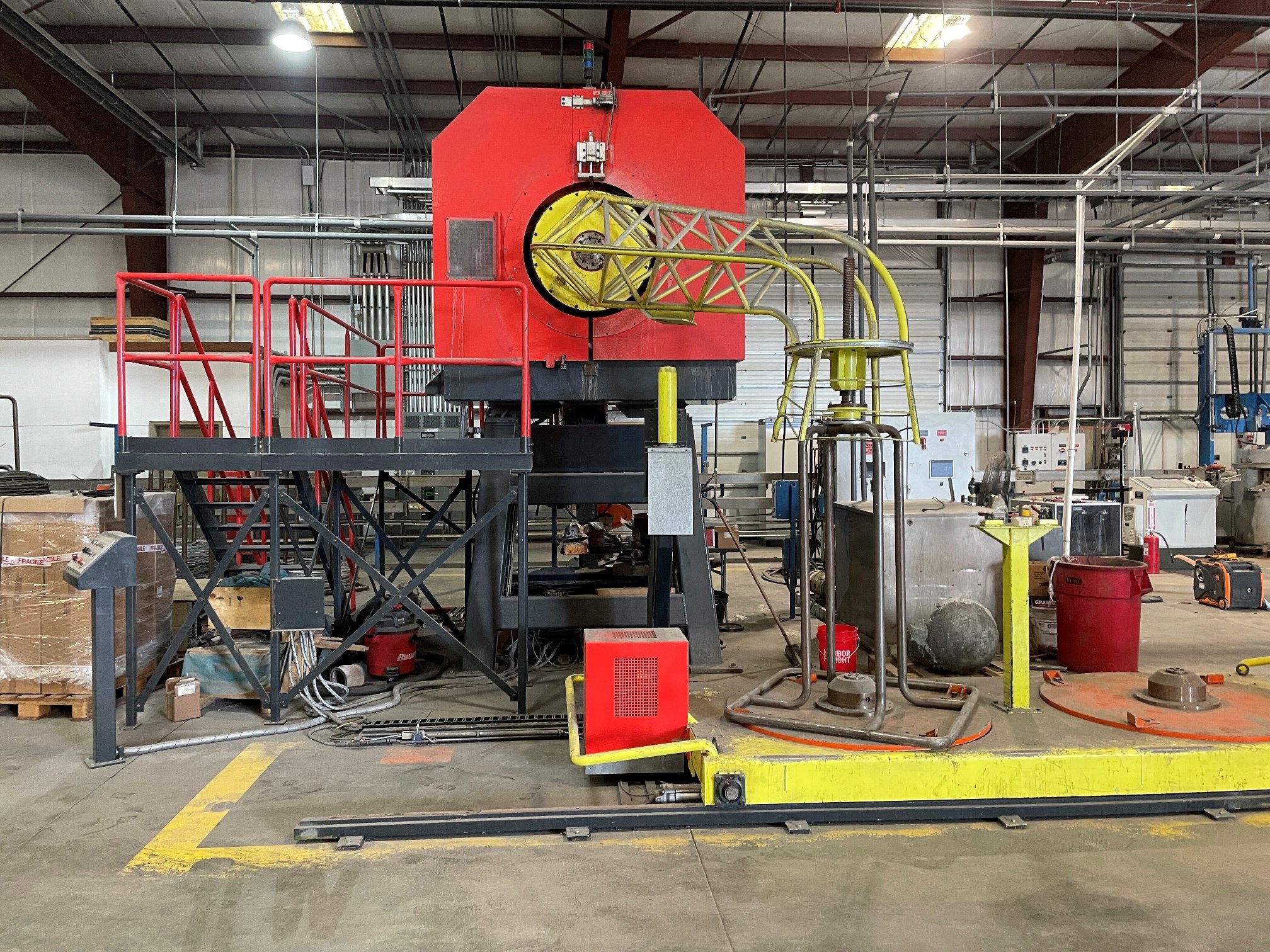

ROT 900 Dead block coiler with single position shuttle turntable
Supervisory control and data acquisition system (SCADA)
Spare parts with sale- heater tubes, blaster parts, spare motors.

Year of Manufacture: 2023
Rod Size: 5.5MM to 7MM
Rod Grade: – C1006 to C1065
Speed: 60-200 m/Min
Coating Weight: 122-490 Grams Per Square Meter (0.40- 1.6 Ounces Per square foot)
