Ref: 23-171 – Schumag KZRP IV-B, Draw, Straight & Cut Combined Drawing Line, Year 2005

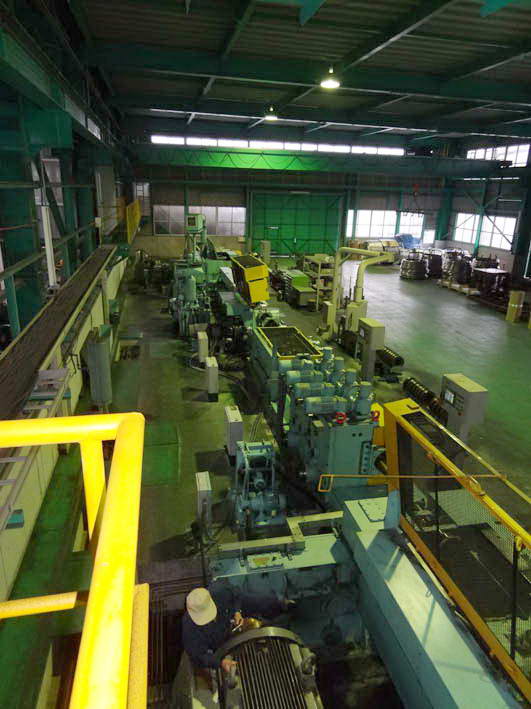

Draw, Straight & Cut Combined Drawing Line
In storage, ready for loading. Decommissioned in Spring 2014

Includes:

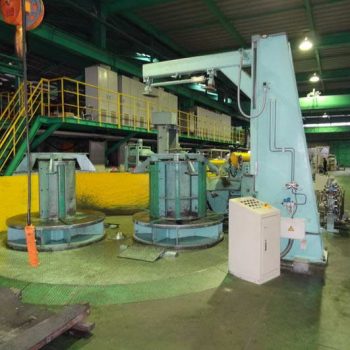

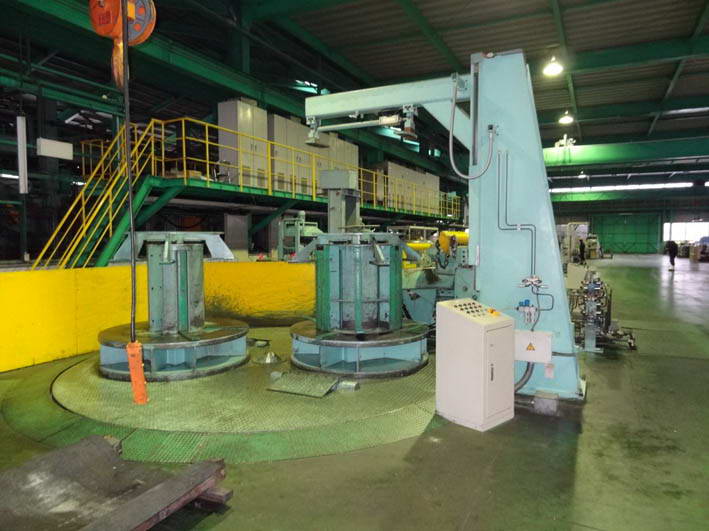

Pay-off Carousel for two Coils
2-Plane Pre-Straightener Before Drawing Machine
Push Pointer
Drawing Machine (Main Motor 356 kW 475 HP Inverter)

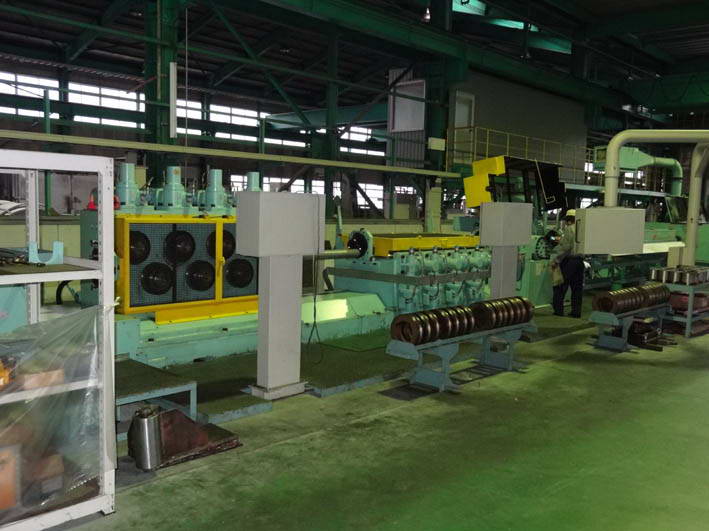

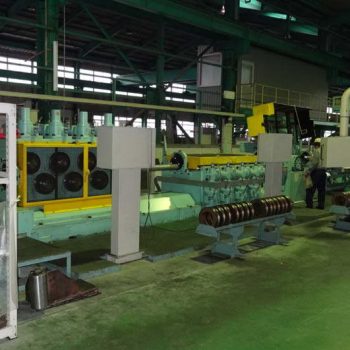

2-Plane Straightener
Shearing Machine
Intermediate Pipe Receiver/Feeding Pinch Roll
Seven (7) Nozzle Polishing (Motor 200 HP)
Run Out Table
Electrical panel



Manufacturer: Schumag
Model: KZRP IV-B
Year of Manufacture: 2005
Capacity: Non-ferrous: 22 mm to 60 mm Diameter Ferrous: Round Bar: 53 mm; Hexagonal Bar: 50 mm; Square Bar: 45 mm; Pipe: 60 mm; Flat Bar: 70 mm
Cutting Length: Non-Ferrous: Aluminum: 2 meters to 5 meters (6.5 ft to 16.4 ft.) Ferrous: 3 m (10 ft.)
Speed: 10 to 40 m/min

For more pictures, further specifications, questions, or if you cannot find what you are looking for, please contact us.
