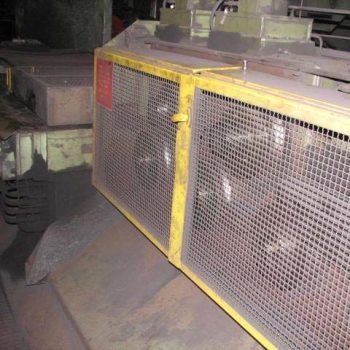

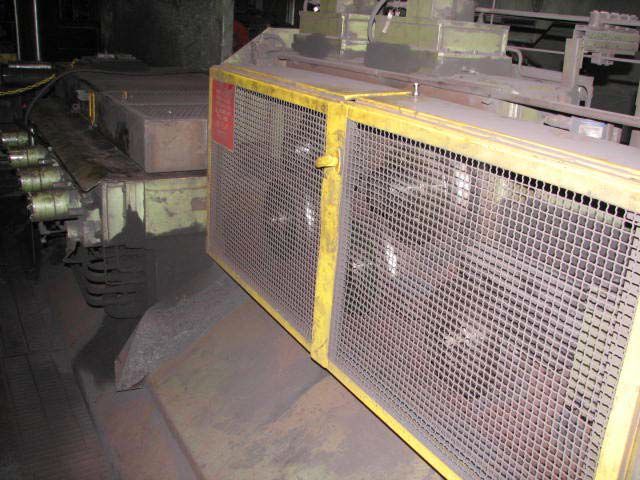

Ref: 23-156 - Schumag KZRP-IV, Draw, Straight & Cut Combined Drawing Line, Year 2007 - Image 2
Ref: 23-156 - Schumag KZRP-IV, Draw, Straight & Cut Combined Drawing Line, Year 2007 - Image 3

Ref: 23-156 – Schumag KZRP-IV, Draw, Straight & Cut Combined Drawing Line, Year 2007

Draw, Straight & Cut Combined Drawing Line
In storage, ready for loading. Decommissioned in Spring 2014

Includes:
Pay-off for two Coils
2-Plane Pre-Straightener Before Drawing Machine
Push Pointer
Drawing Machine (Main Motor 475 HP Inverter)
2-Plane Straightener
Shearing Machine
Intermediate Pipe Receiver/Feeding Pinch Roll
Seven (7) Nozzle Polishing (Motor 200 HP)
Run Out Table
Electrical panel

Manufacturer: Schumag
Model: KZ R IVB/450/40
Year of Manufacture: 2007
Capacity: Non-ferrous 22 mm to 60 mm Diameter Ferrous: Round Bar: 53 mm; Hexagonal Bar: 50 mm; Square Bar: 45 mm; Pipe: 60 mm; Flat Bar: 70 mm
Cutting Length:  Non-Ferrous: Aluminum: 2 meters to 5 meters (6.5 ft to 16.4 ft.) Ferrous: 3 m (10 ft.)
