Ref: 21-161 – Hazelett 12C, Copper Continuous Casting Line, 12 tons/hour

Copper Continuous Casting Line

Includes:
Asarco 12 Ton/Hr. gas Fired Shaft melting furnace
Asarco 8 Ton/hr. gas fired holding furnace

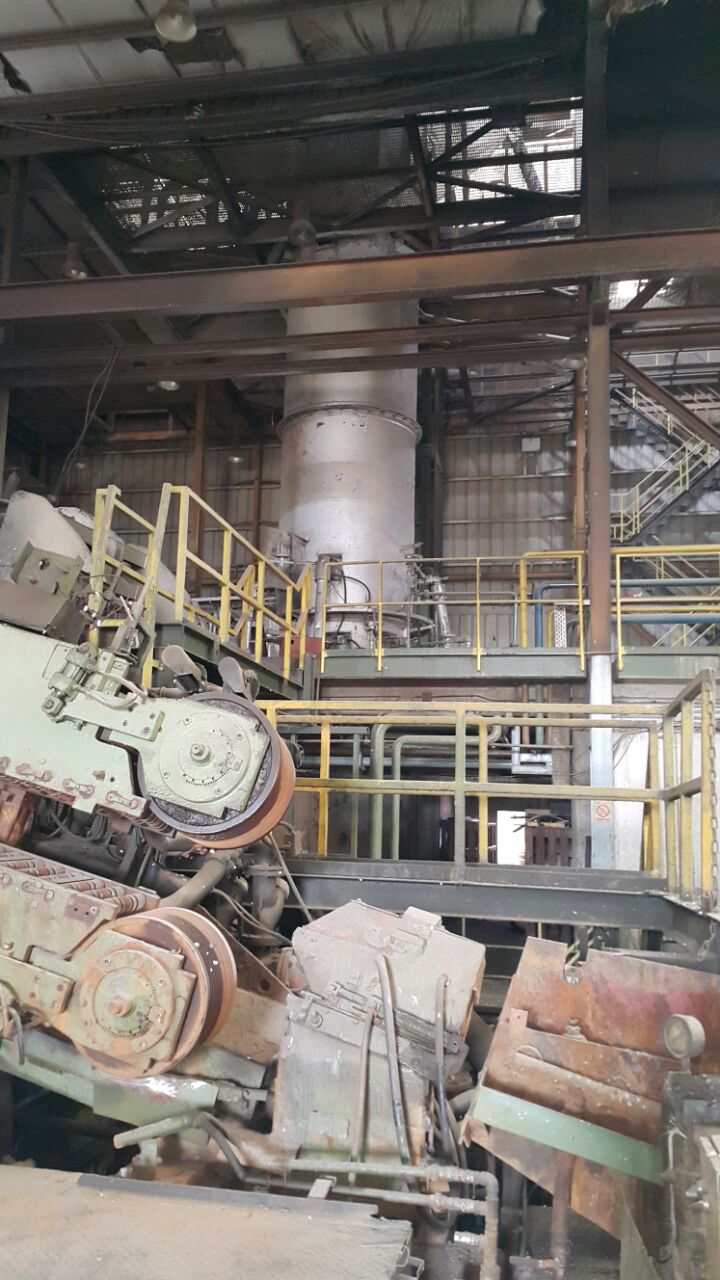

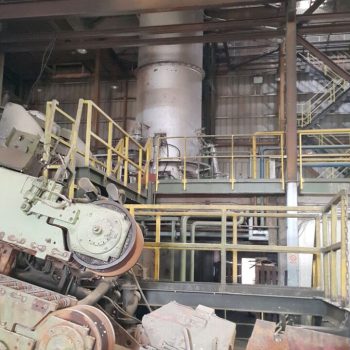

Hazelett Model 12C 10 Twin Belt rod caster to make 50mm x 55mm cast section, capacity 11.2 MT/hr.

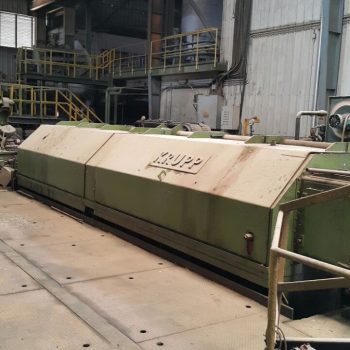

Krupp 10 stand continuous copper rolling mill, 90 degree offset rolls, exit diameter 8mm.
Krupp Deoxidation and cooling system using 16m cooling tube and isopropanol

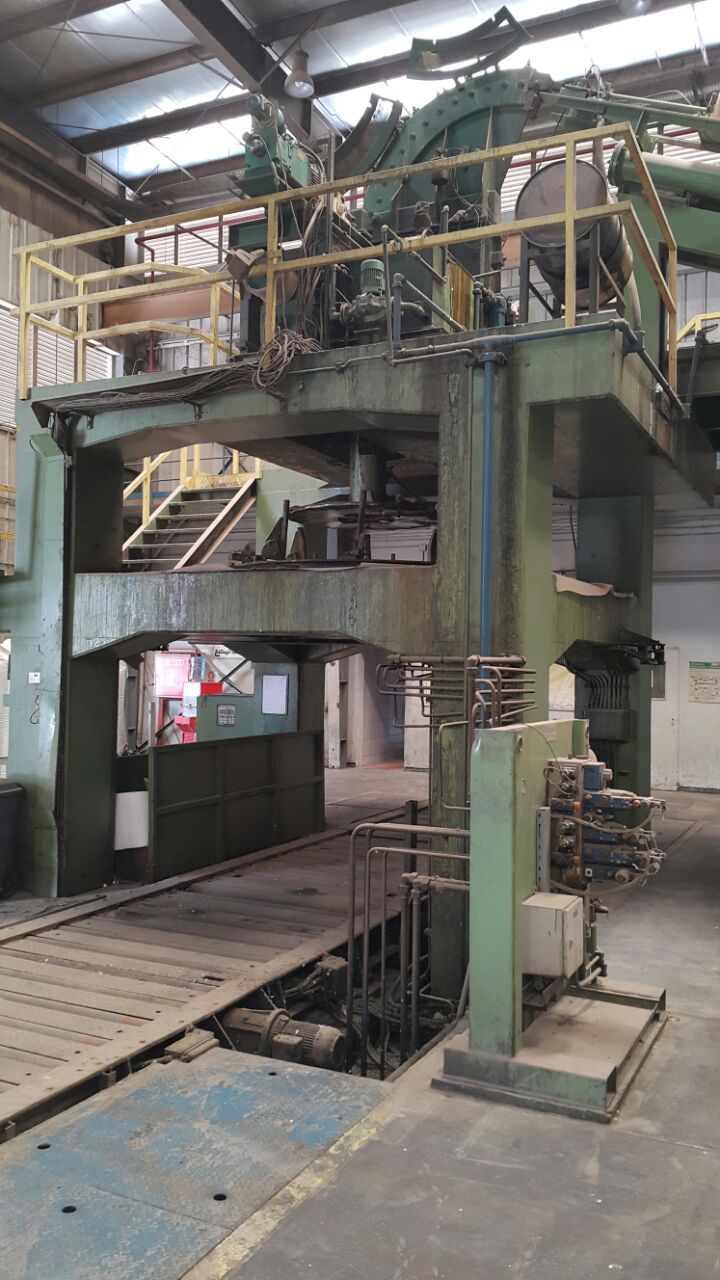

Krupp inverted coiler for finish coil size

Manufacturer: Hazelett
Model: 12C
Year Of Manufacture: 1985
Output: 12 tons/hour
Electrics: Frequency 60 Hz., Voltage 380
Finish Coil Outer Diameter: 1450mm (57″) – 1650mm (65″)
Finish Coil Inner Diameter: 800mm (31″) – 1000mm (39″)
Finish Coil Height: 1250m (49″) – 1300mm (51″)
Finish Coil Weight: 3500 Kg (7716 Lbs.) – 5000 Kg (11,000 Lbs.)

For more pictures, further specifications, questions, or if you cannot find what you are looking for, please contact us.
