Ref: 17-257 – Godderidge 24in dia. Double Twist Buncher

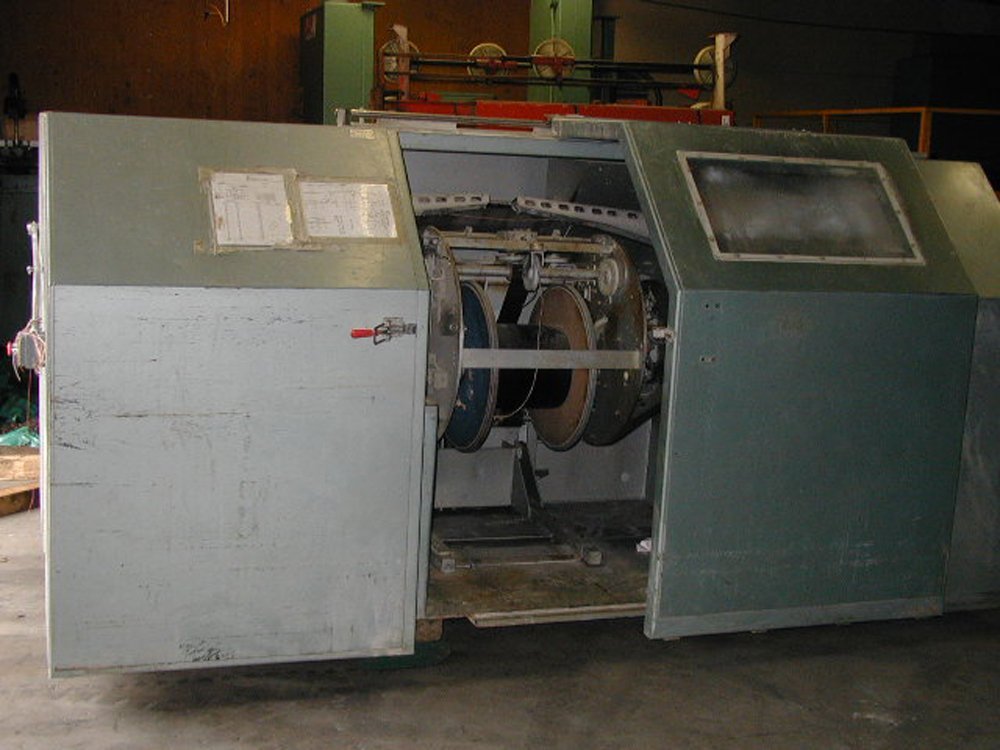

Double Twist Buncher

Manufacturer: Godderidge
Year of Manufacture: 1993

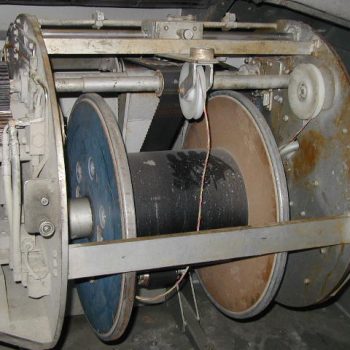

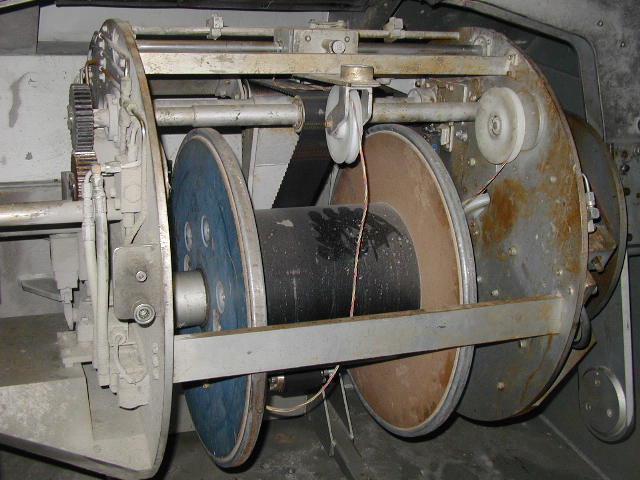

Reel Dimensions: 24″ dia. reel, Traverse: 13”, Barrel OD: 13”, Arbor hole: 1.5”, Drive pin radius: 4.5”

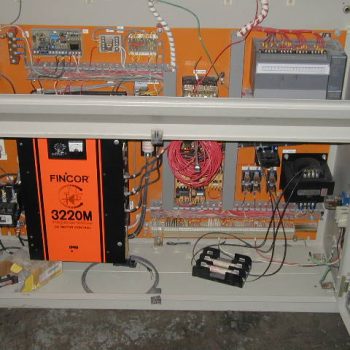

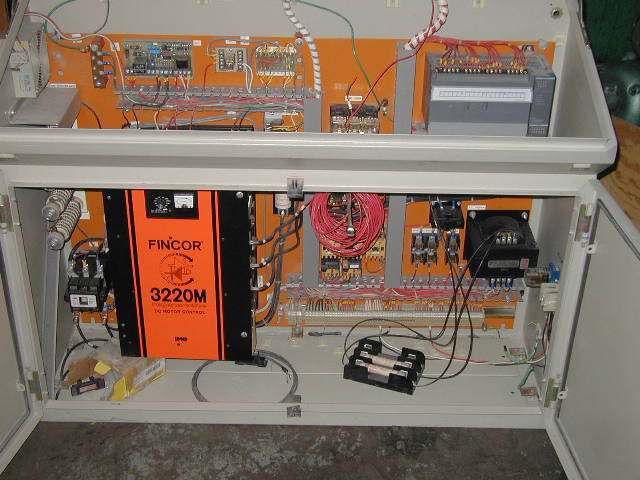

Motor: 28.4 KW (38 hp) DC
Speed: 2500 twist/min.
Lay length: Standard: 12 to 76 mm, Pairing: 24 – 152 mm, Short Lays: 6 to 38 mm
Flexible and Rigid Bare Size Range: up to 10 sqmm (127 X 30 awg)
Rigid Insulated Size Range: up to 4 sqmm (7 X 20 awg)
Flexible Insulated Size Range: up to 10 sqmm (overall O.D. 0.400”)
