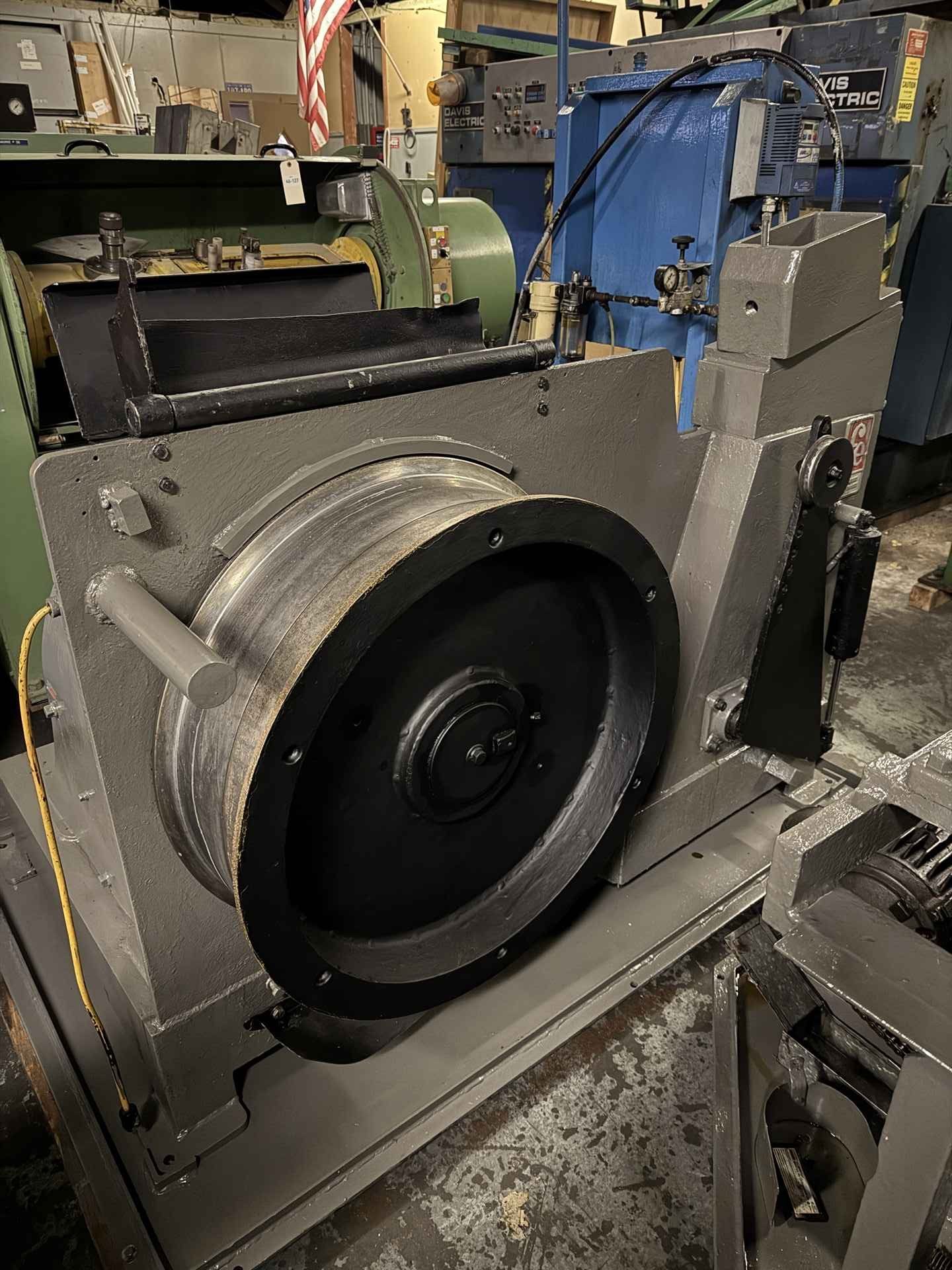

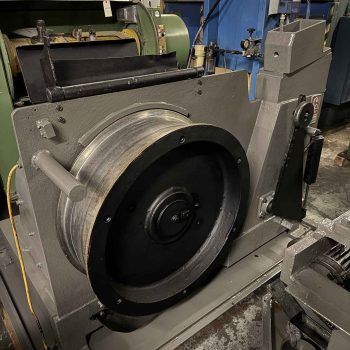

Ref: 16-241 - Fastener Engineers 28in dia. In-line Horizontal Draw Block and Straightener

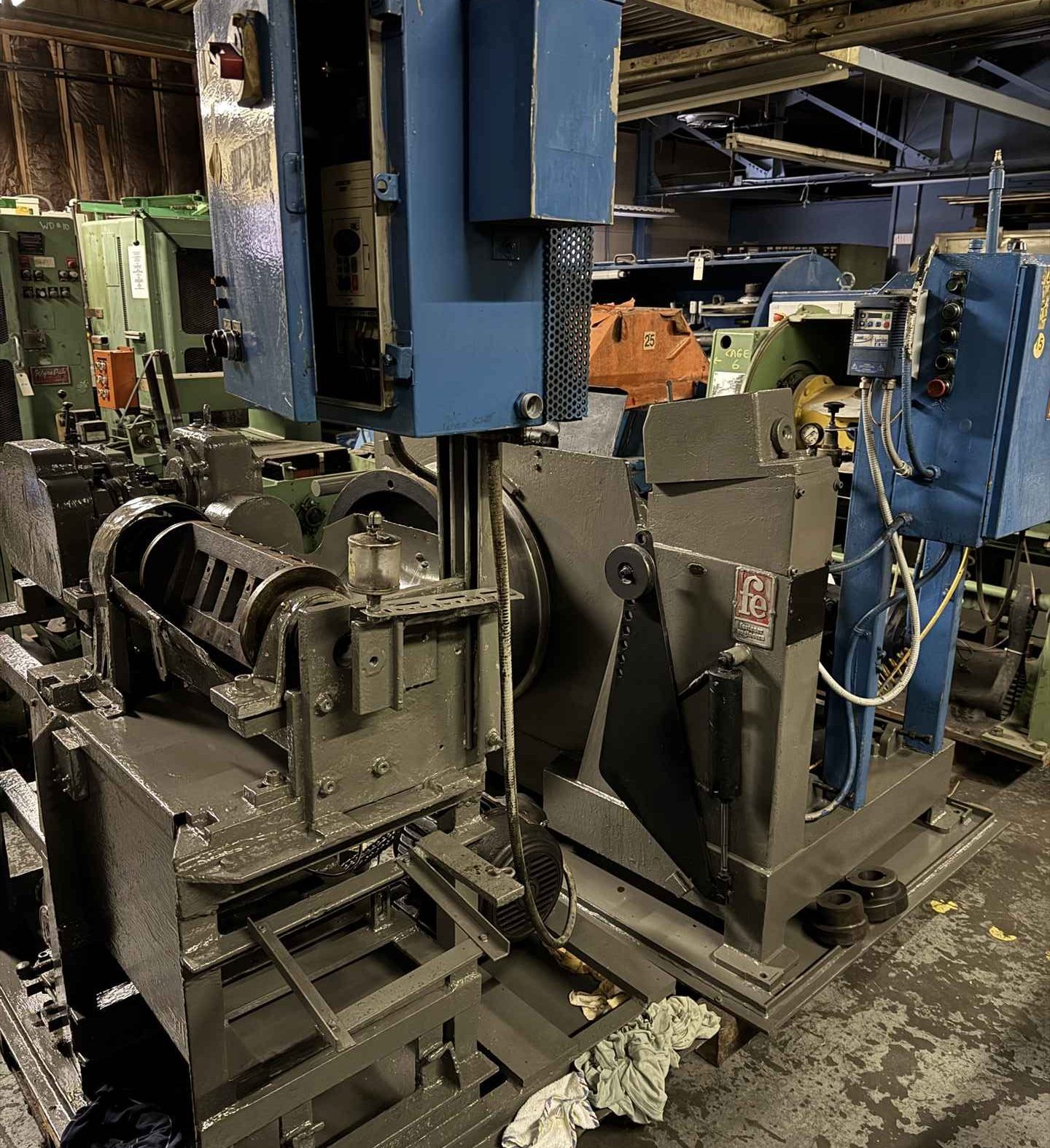

Ref: 16-241 - Fastener Engineers 28in dia. In-line Horizontal Draw Block and Straightener - Image 2

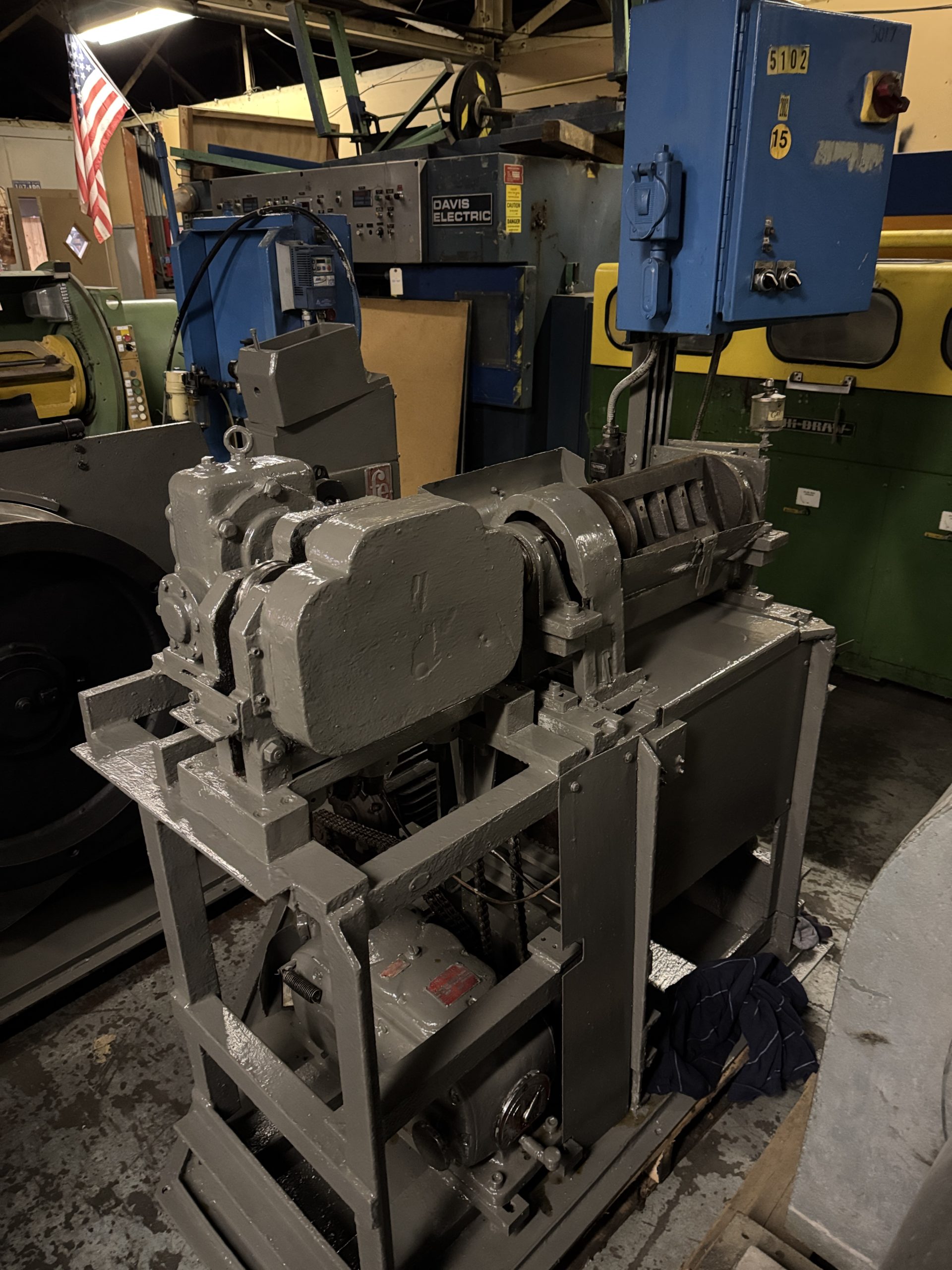

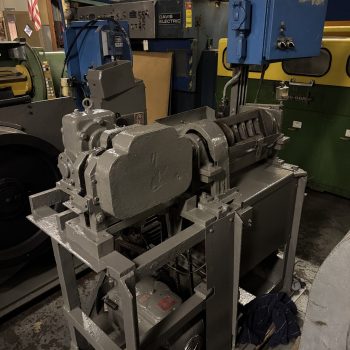

Ref: 16-241 - Fastener Engineers 28in dia. In-line Horizontal Draw Block and Straightener - Image 3

Ref: 16-241 – Fastener Engineers 28in dia. In-line Horizontal Draw Block and Straightener

In-line Horizontal Draw Block and Straightener

Manufacturer: Fastener Engineers
Block Diameter: 28 inch (710 mm)
Motor Draw Block: Baldor 5 HP, 208-230/460, 13.9-13.4/6.7 Amps. 1750 rpm
Motor Straightener: Dayton 3 HP, 230/460, 9.4/4.7 amps, 1175 rpm
Speed: 5 to 40 fpm
Max Area reduction: 60,000 PSI material .091, 100,000 PSI material .055
Electric Supply: 230V / 3 phase / 60 Hz
Dimensions: Drawing Machine 7’-6” X 4’-6”, Straightener: 5’ X 4’

For more pictures, further specifications, questions, or if you cannot find what you are looking for, please contact us.
