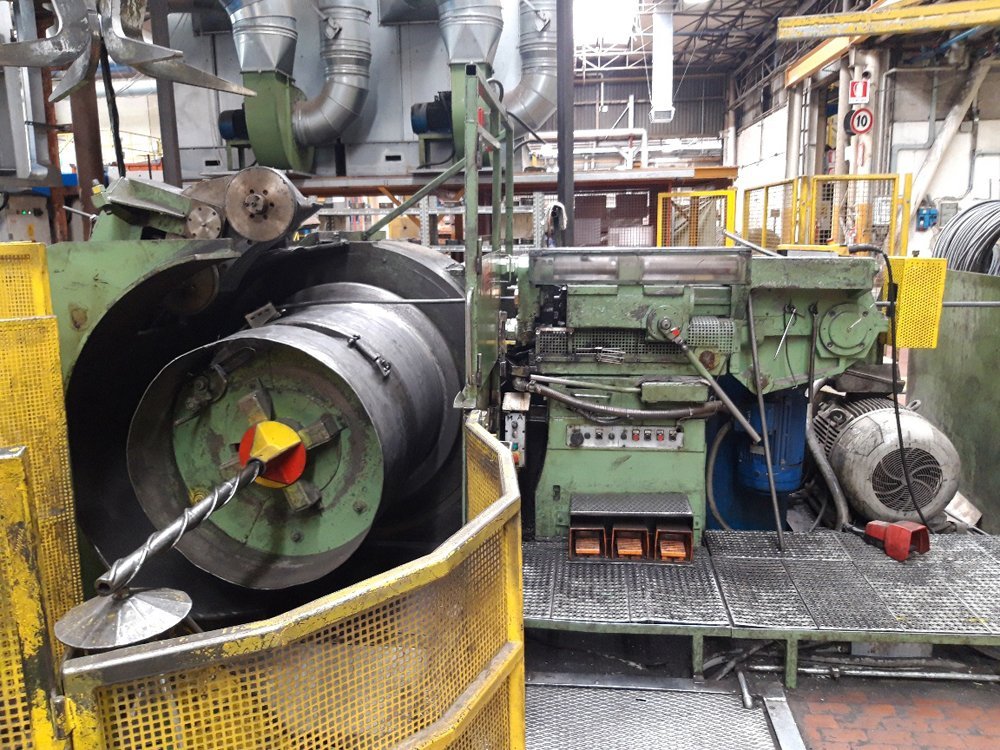

Ref: 16-240 – Malmadie Sidewinder, 38in dia. Horizontal Bull Block

Horizontal Bull Block

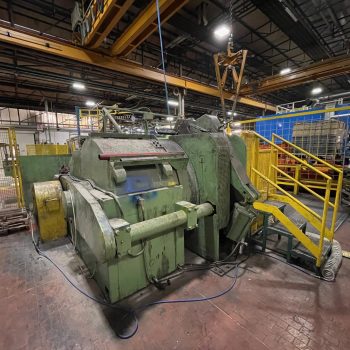

Machine is still installed and in running condition

Manufacturer: Malmadie
Model: Sidewinder
Year of Manufacture: 1968
Block Diameter: 970 mm (38 inch)
Motor: 110 kW (147 HP) 50 HZ, 400 V, 191 A, 1488 rpm
Motor Drive: Inverter Schneider ATV7, PLC Siemans S7-200
Steel rod Tensile: 500 N/mm2

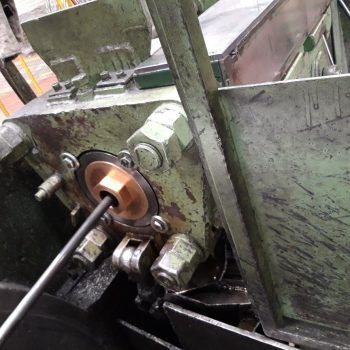

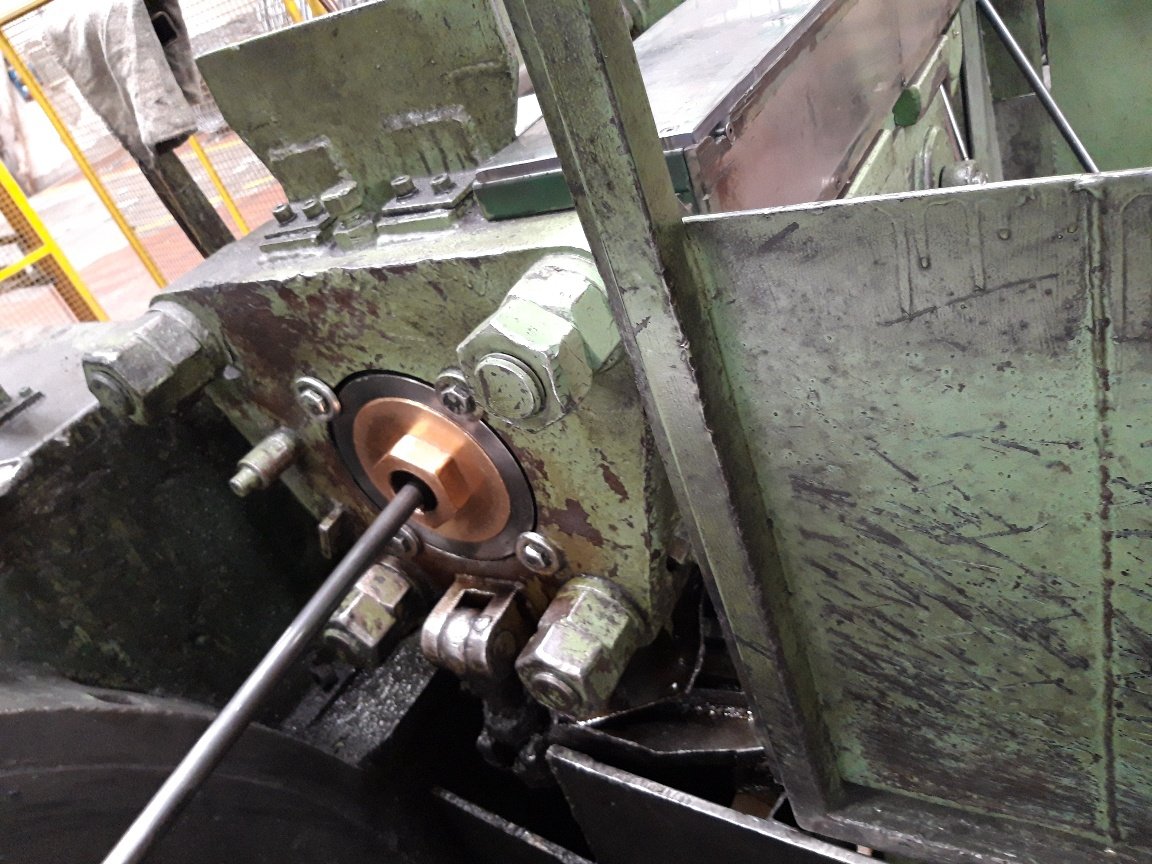

Die size: 120 mm X 45 mm
Smallest rod size entered: 16 mm (0.63 inch)
Largest rod size entered: 25 mm diameter (1 inch) Area reduction max 6% to 8%
Pay-off Type: Uncoiler powered turntable 1500 kg (3300 lbs) coils
