Ref: 10-255 – MIOBA Conveyor Tunnel Annealing Furnace, Year 2016

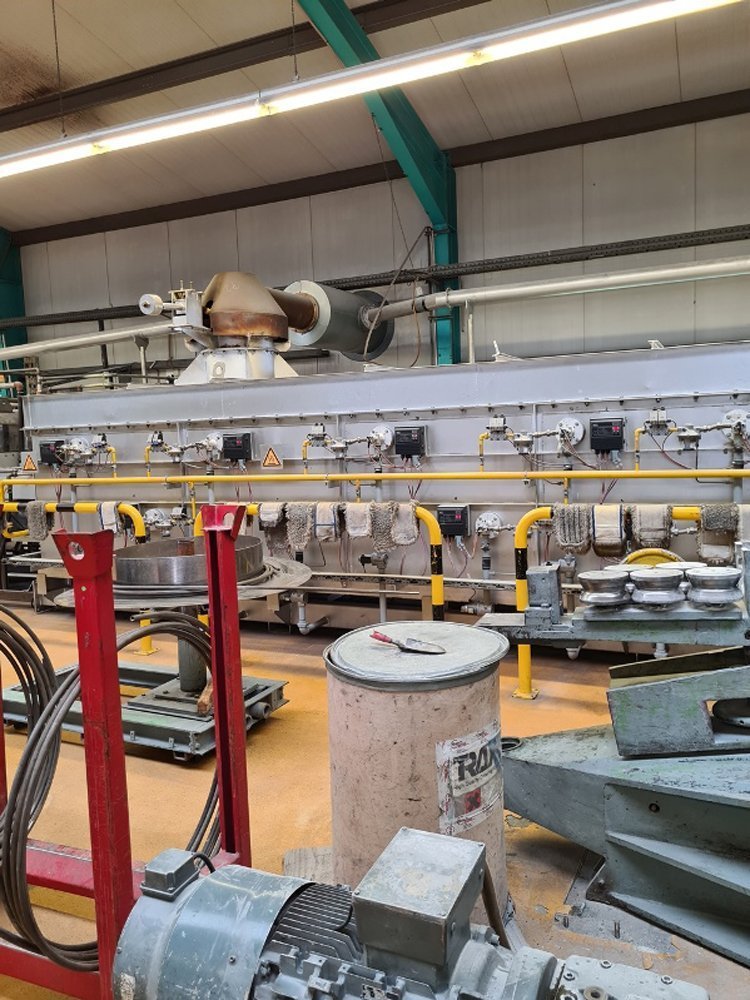

Conveyor Tunnel Annealing Furnace
The line was last in production in December of 2022, still installed

Manufacturer.: Mitteldeutscher Industrieofenbau GmbH & Co. KG (MIOBA)
Year of Manufacture: 2016
Fuel Type: Natural Gas (10 kWh/m2)

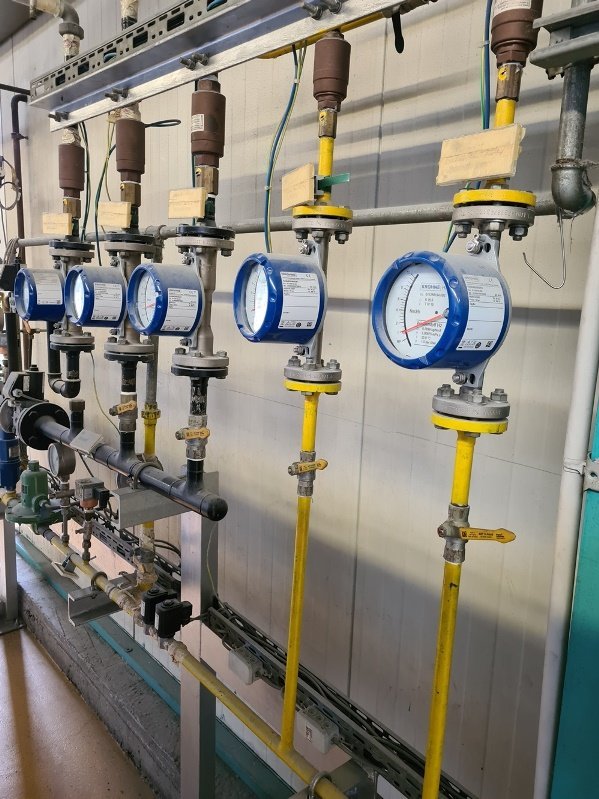

Inert Gas Atmosphere: Hydrogen/Nitrogen (approx. 10% H2, 90% N2)
Capacity: 210 kg/hour (463 lbs/hour)
Burners: 18
Through Speed: 0.08 m/min to 0.155 m/min (0.26 fpm to 0.38 fpm)
Heating Zones: 4
Cooling Zones: 1
Furnace Dimensions: 6.5 m X 2.1 m X 1.5 m (21 ft X 7 ft X 5 ft)
Maximum Coil Diameter: 1 meter (3.28 ft),
Maximum Coil Weight: 35 to 40 kg
Production Output: 3,360 tons in 24 hours
